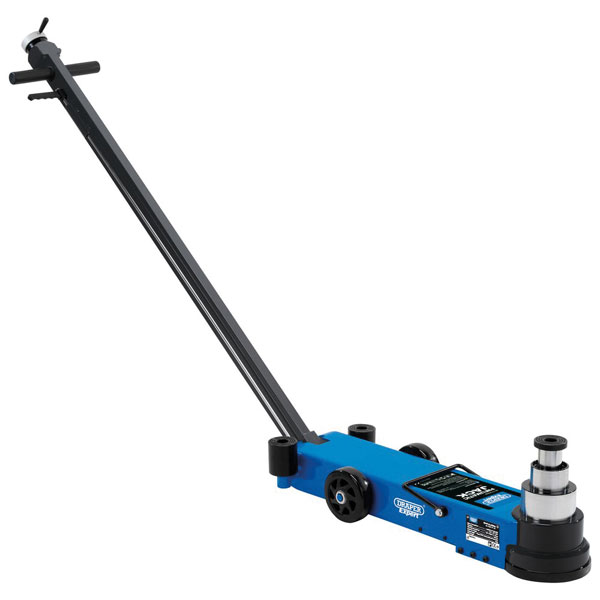

Draper Expert 02080 Pneumatic Long Chassis Low Profile Jack (40 Tonne)

Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.

• Capacity stage 1 40 Tonne (40,000kg)
• Capacity stage 2 20 Tonne (20,000kg)
• Capacity stage 3 10 Tonne (10,000kg)
• Minimum height 125mm
• Maximum height stage 1 302mm (inc extensions)
• Maximum height stage 2 347mm (inc extensions)
• Maximum height stage 3 396mm (inc extensions)
• Lift height stage 1 57mm
• Lift height stage 2 45mm
• Lift height stage 2 49mm
• Operating air pressure 9 – 12BAR (130 – 174psi)
• Air consumption 11.5cfm
• Air inlet 1/4" BSP
• Wheel diameter 125mm
• Wheel width 47.5mm
• Saddle diameter 70mm
• Extensions 45mm and 75mm
• Handle length 1380mm
• Chassis size 830 x 179 x 125mm
• Nett weight 44kg
