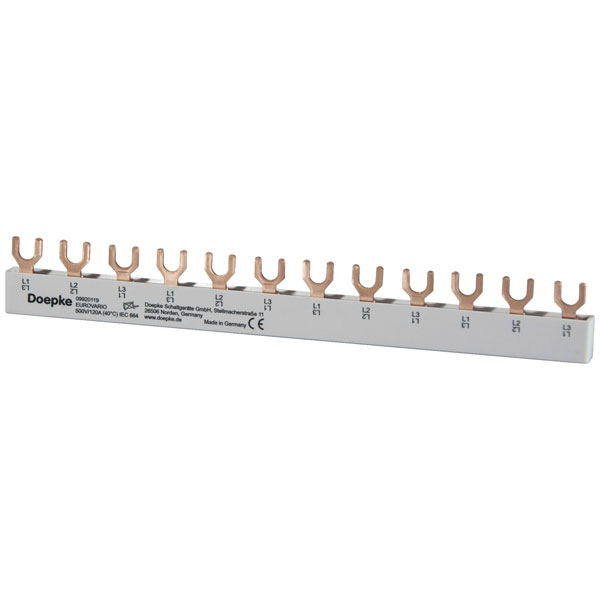

Doepke 09920119 Euro Vario Phase Modifier 10mm² 63A 690V 1 piece

The Doepke phase modifier, model 09920119, is designed for electrical systems with specifications of 10 mm², 63 A, and 690 V. This product is suitable for applications requiring reliable phase adjustment, ensuring efficient energy distribution. It is typically used in industrial environments to manage phase imbalances in electrical circuits.

Type	Phase modifier
Current Rating	63A
Can be cut to size	false
Colour	Grey
Conditioned rated short-circuit current Iq	15kA
Cross Section	10mm²
Dimensions	(W x H) 212 mm x 17.5 mm
Height	17.5mm
Insulated	true
Length	212mm
Max. rated operation voltage Ue	500V
Module Width	17.8mm
Nominal Current	63A
Nominal current - rounded value	63A
Nominal Voltage	690V
Number of partitions	12
Number of Phases	3
Number of Poles	3
Operating Voltage	690V
Rated permanent current Iu	63A
Rated short-time withstand current lcw	15kA
Rated Surge Voltage	4.5kV
Suitable for devices with auxiliary switch	false
Suitable for devices with N-conductor	false
Suitable for number of devices	12
Type of electric connection	Fork
Width	212mm
Width in number of modular spacings	12
