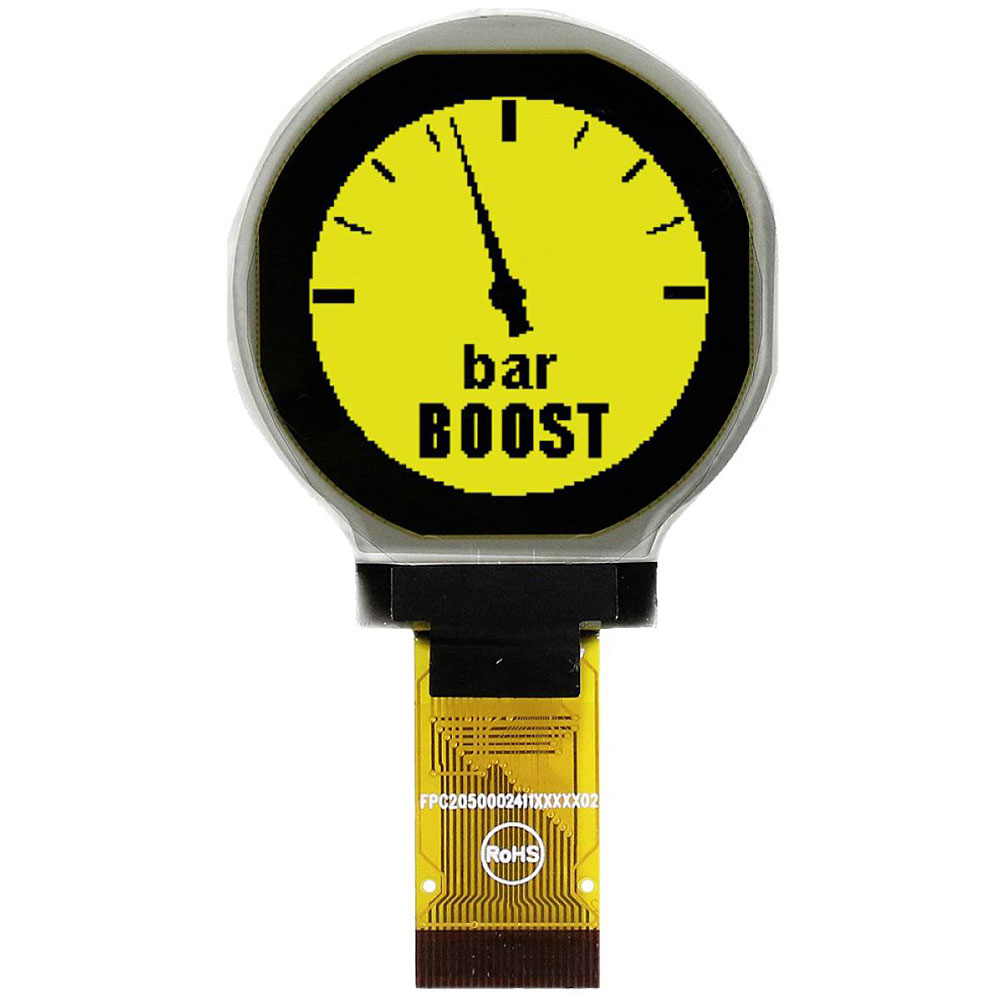

DISPLAY VISIONS EAW128128-XRLG Display OLED 36.9 x 41.2 x 2.1 mm Black

Display Visions EAW128128-XRLG is an OLED display module with dimensions of 36.9 mm by 41.2 mm by 2.1 mm, offering a high-contrast graphical interface for a variety of applications. This component is designed to deliver clear and sharp visuals, utilising organic light-emitting diode technology for superior performance over traditional liquid crystal displays. The display's compact size and high pixel density make it particularly useful in portable electronics, compact instrumentation, and any application where space and power efficiency are priorities. Engineers may also find it advantageous in developing user interfaces for embedded systems, given its low power consumption and high visibility under various lighting conditions.

Type	OLED screen
Depth	2.1mm
Dimensions	(W x H x D) 36.9 x 41.2 x 2.1 mm
Height	41.2mm
Max. current consumption	24mA
Max. operating voltage	3.30V DC
Maximum Temperature	80°C
Min. operating voltage	2.70V DC
Minimum Temperature	-40°C
Operating Voltage	2.70 - 3.30 V DC
Width	36.9mm
