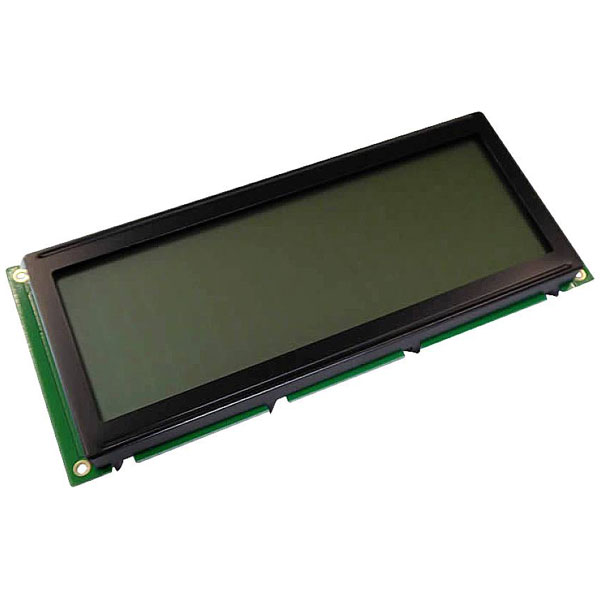

Display Elektronik DEM20487FGH-PW LCD White 20x4 Pixel 146x62.5x11.1mm

Display Elektronik DEM20487FGH-PW is a liquid crystal display module featuring a 20x4 character format, designed for integration into various electronic systems requiring text-based output. This graphics display, constructed within dimensions of 146 x 62.5 x 11.1 mm, utilises super-twisted nematic (STN) technology to provide enhanced visibility and contrast. Its white LED backlight ensures clarity in various lighting conditions, making it ideal for use in industrial control panels, measurement devices, and consumer electronics. The module's versatility in character and graphical output renders it suitable for diverse engineering applications, particularly where space efficiency and reliable performance are paramount.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 146 x 62.5 x 11.1 mm
Background Colour	White
Character Matrix	20 x 4
Controller Type	HD44780 Compatible
Depth	11.1mm
Digit Height	9.23mm
Height	62.5mm
Light area (Height)	42.5mm
Light area (width)	123mm
Lighting Type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Resolution	20 x 4 Pixel
Width	146mm
