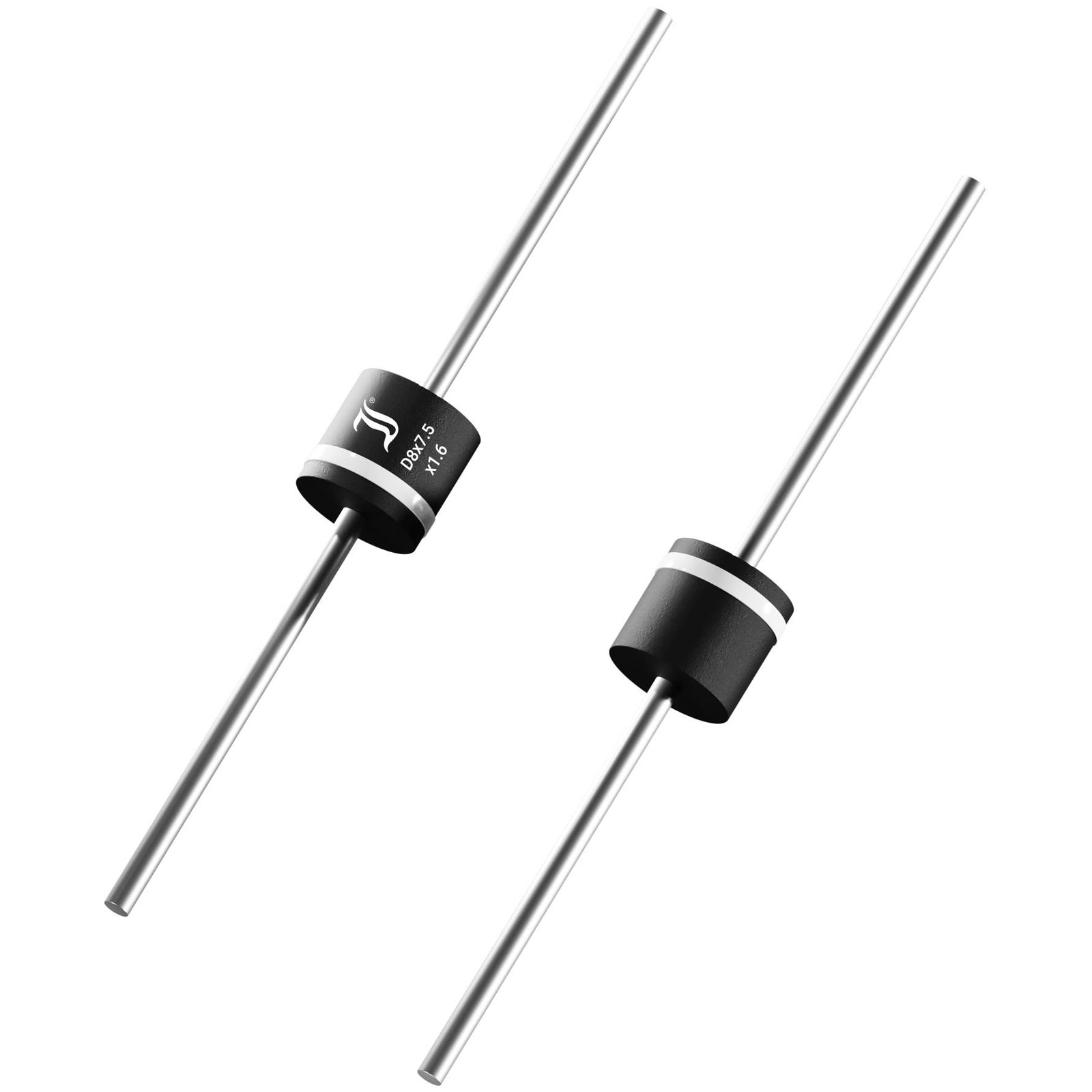

Diotec SBX4045-3G Diode Schottky 45V LowRth D8x7.5

Diotec SBX4045-3G Diode Schottky 45V LowRth D8x7.5 is a Schottky diode that utilises a planar metal-semiconductor junction, characterised by its low forward voltage drop and fast switching capabilities. With a maximum reverse voltage of 45 volts, this component is designed for efficient rectification applications, particularly in power supply circuits and as a blocking diode in photovoltaic systems. The device is housed in a D8x7.5 package, optimised for thermal performance with its LowRth design, ensuring effective heat dissipation. This Schottky diode is commonly used in industries requiring high-frequency operation and low power loss, such as telecommunications and consumer electronics. Its construction allows for reliable operation in environments requiring robust voltage handling and efficient energy conversion.

Type	Schottky diode
Content	1
Diode capacitance C(D)	1400pF
Enclosure	D8x7.5_LowRth
Forward current I(F)	40A
Forward Voltage U(F)	0.55V
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	330A
Product Type	Schottky diode
Reverse leakage Current I(r)	110µA
Reverse Voltage U(R)	45V
