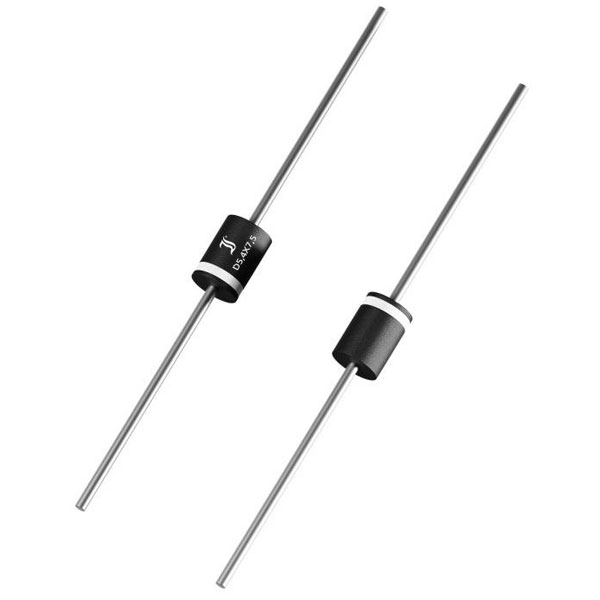

Diotec SBX2040-3G Schottky diode LowRth 40 V D5.4x7.5

Diotec SBX2040-3G is a Schottky diode characterised by its LowRth technology, suitable for applications requiring efficient thermal management and reliable blocking performance. This diode operates at a maximum reverse voltage of 40 V and is encapsulated in a D5.4x7.5 package, providing a compact solution for space-constrained designs. The SBX2040-3G employs a p-n junction, essential for its fast switching capabilities and low forward voltage drop, making it ideal for use in power supply rectification, reverse polarity protection, and switch-mode power supplies. Its precise thermal characteristics and robust design ensure effective heat dissipation, supporting high reliability in various electronic systems.

Type	Schottky diode
Content	1
Diode capacitance C(D)	720pF
Enclosure	D5.4x7.5 LowRth
Forward current I(F)	20A
Forward Voltage U(F)	0.53V
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	290A
Product Type	Schottky diode
Reverse leakage Current I(r)	60µA
Reverse Voltage U(R)	40V
