Diotec SBCT1090 Schottky diode TO 220AB 90 V

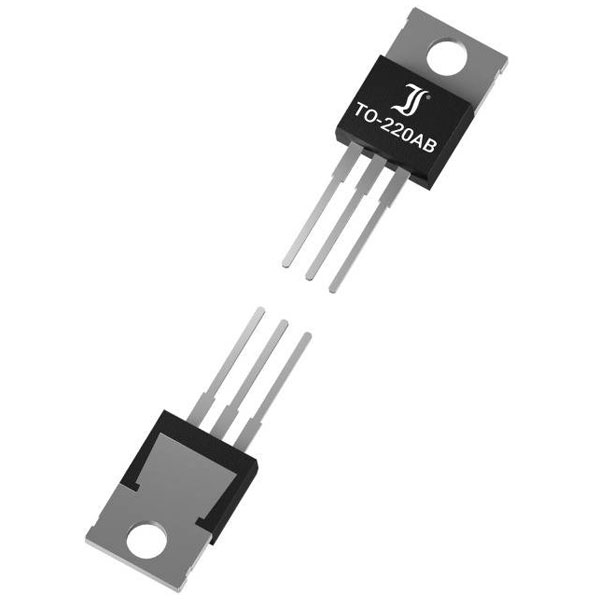

Diotec SBCT1090 is a Schottky diode housed in a TO-220AB package, designed to withstand reverse voltages of up to 90 V. This diode is characterised by its low forward voltage drop and fast switching capabilities, making it suitable for applications requiring efficient rectification. The pn junction utilised in this device enhances its performance as a blocking diode, significantly reducing power loss in high-frequency circuits. Commonly used in power supply designs, switch-mode power supplies, and output rectification, the SBCT1090 is a reliable choice for engineers seeking to optimise energy efficiency and minimise thermal dissipation in their circuits.

Type	Schottky diode
Content	1
Enclosure	TO 220AB
Forward current I(F)	10A
Forward Voltage U(F)	0.92V
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	100A
Product Type	Schottky diode
Reverse leakage Current I(r)	300µA
Reverse Voltage U(R)	90V
