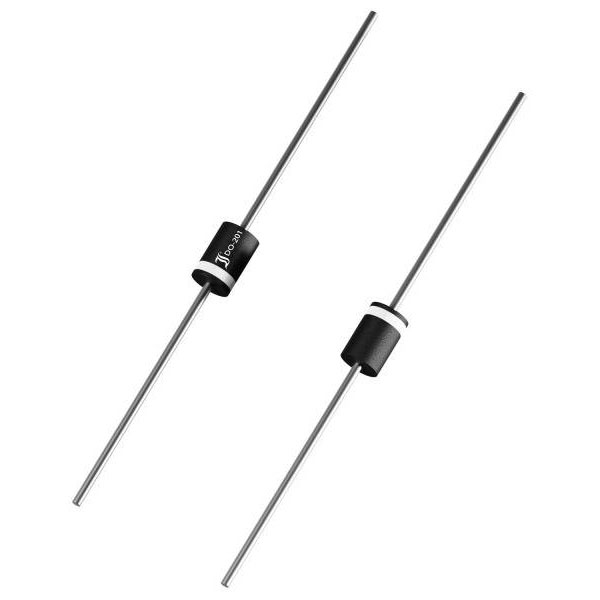

Diotec SB540 Schottky diode 40 V DO 201 Schottky Diodes

Diotec SB540 is a Schottky diode designed for efficient and reliable performance in various electronic applications. With a reverse voltage rating of 40 V, this diode is housed in a DO-201 package, making it suitable for low to medium power rectification tasks. Its Schottky barrier technology offers a low forward voltage drop, minimising power loss and enhancing efficiency, which makes it ideal for use as a blocking diode in photovoltaic systems, power supplies, and battery charging circuits. The SB540 is characterised by its rapid switching capability due to the absence of pn junctions typically found in conventional diodes, ensuring improved performance in high-frequency applications. Its robust construction and reliable operation make it a preferred choice for engineers seeking dependable rectification solutions in their circuit designs.

Type	Schottky diode
Content	1
Enclosure	DO 201
Forward current I(F)	5A
Forward Voltage U(F)	0.55V
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	125A
Product Type	Schottky diode
Reverse leakage Current I(r)	500µA
Reverse Voltage U(R)	40V
