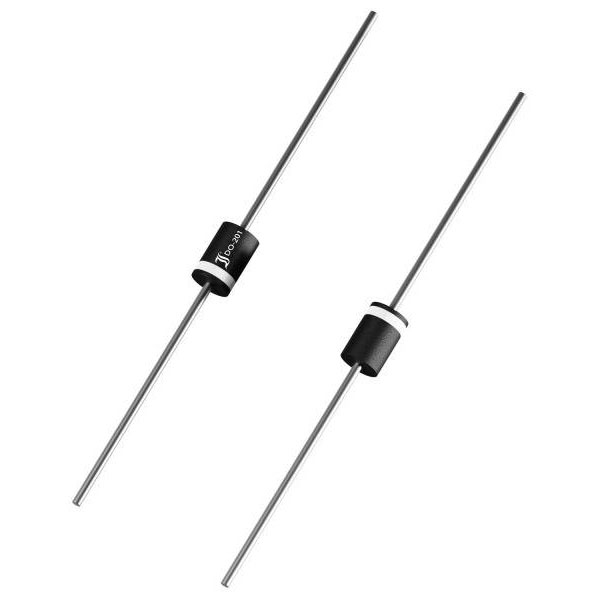

Diotec SB5200 Schottky diode 200 V DO 201

Diotec SB5200 is a Schottky diode designed to efficiently rectify current in electronic circuits, housed in a DO-201 package and capable of withstanding a reverse voltage of up to 200 V. This semiconductor component is characterised by its low forward voltage drop and fast switching speed, making it an excellent choice for applications requiring efficient power conversion such as power supplies, inverters, and DC-DC converters. The Schottky nature of the diode, utilising a metal-semiconductor junction instead of a traditional p-n junction, allows for reduced power loss and improved performance in high-frequency environments. Engineers opt for this component not only for its effective current blocking capabilities but also for its reliability in protecting circuits from voltage spikes and ensuring rapid switching within power management systems.

Type	Schottky diode
Content	1
Diode capacitance C(D)	120pF
Enclosure	DO 201
Forward current I(F)	5A
Forward Voltage U(F)	0.90V
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	125A
Product Type	Schottky diode
Reverse leakage Current I(r)	100µA
Reverse Voltage U(R)	200V
