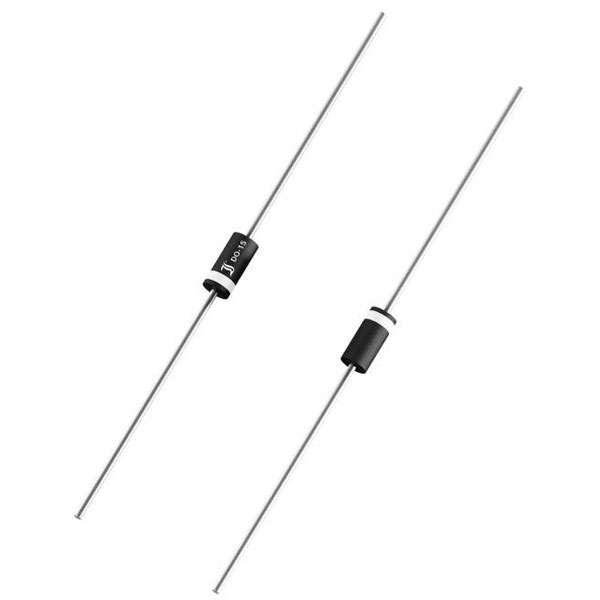

Diotec SB220 Schottky diode DO 15 20V type Schottky Diodes

Diotec SB220 is a Schottky diode that features a forward voltage of 20 volts, packaged in a DO-15 case. This diode utilises a metal-semiconductor junction, known as a Schottky barrier, which allows for low forward voltage drop and fast switching capabilities, making it an ideal choice for applications requiring efficient rectification and rapid switching. Engineers typically employ the SB220 in power supply circuits as a blocking diode, for polarity protection, or for use in low voltage and high-frequency applications due to its efficient performance and minimal power loss. Its robust design ensures reliable operation in various electronic circuits, maintaining efficiency and supporting substantial current handling capacity.

Type	Schottky diode
Content	1
Enclosure	DO 15
Forward current I(F)	2A
Forward Voltage U(F)	0.50V
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	50A
Product Type	Schottky diode
Reverse leakage Current I(r)	500µA
Reverse Voltage U(R)	20V
