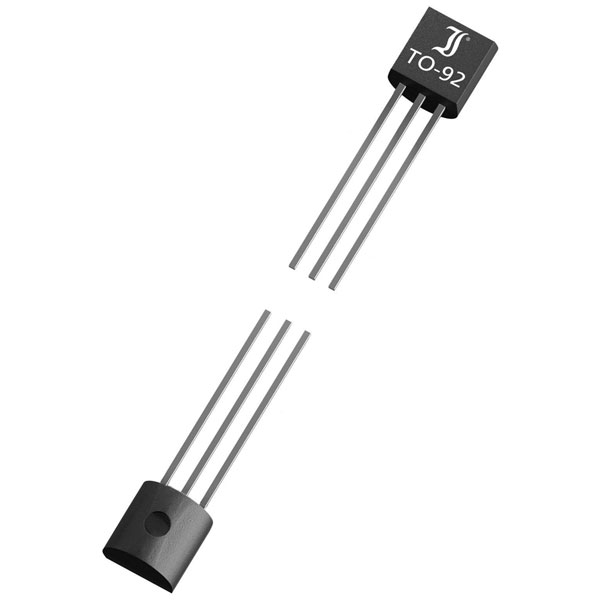

Diotec BC547CBK Transistor TO-92BK NPN discrete for electronic circuits

Diotec BC547CBKThe Diotec BC547CBK is an NPN bipolar junction transistor housed in a TO-92BK package, engineered for general-purpose amplification and switching applications. This silicon transistor is recognised for its reliable performance, with a collector current rating of 100 mA and a maximum voltage rating of 45 V between the collector and emitter. It features excellent gain stability and low noise, making it suitable for a variety of uses in audio amplification, signal processing, and control circuits. Commonly utilised in electronic circuits as a discrete component, the BC547CBK can also serve in more complex transistor driver configurations, offering versatility in both consumer electronics and industrial control systems.

Type	Transistor (BJT) - Discrete
Collector Current	100mA
Collector emitter Voltage U(CEO)	45V
Collector-emitter saturation Voltage (max.)	600mV
Content	1
DC Current Gain (hfe)	400
Enclosure	TO-92BK
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Power (max) P(TOT)	0.5W
Product Type	Transistor (BJT) - Discrete
Transit frequency f(T)	100MHz
