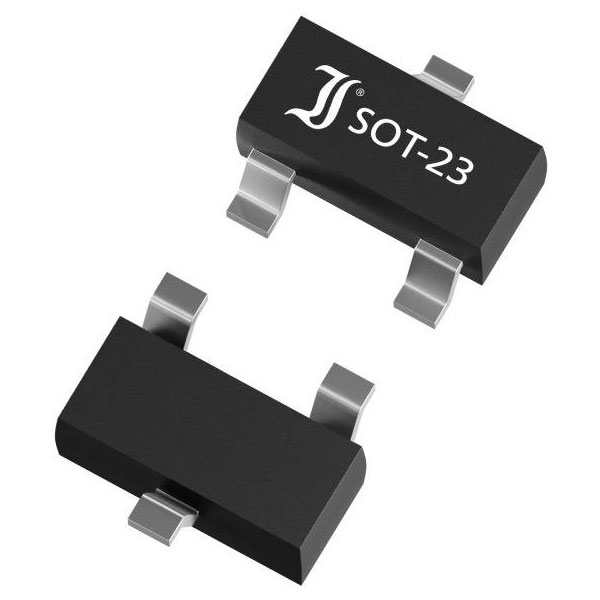

Diotec BAT54S Schottky diode 25V SOT23 package

Diotec BAT54S is a Schottky diode housed in a compact SOT-23 package, designed to provide efficient rectification and switching capabilities in various electronic applications. With a maximum reverse voltage rating of 25 volts, this diode offers low forward voltage drop and fast switching speed, making it ideal for power-efficient circuits. The BAT54S is commonly used as a blocking diode or for protection in power supplies, voltage clamping, and high-speed switching applications, where its low barrier height and efficiency are essential. It features a dual series configuration, utilising a p-n junction to achieve reliable performance in signal and power management tasks, making it highly suitable for integration in portable devices and small-scale electronic systems.

Type	Schottky diode
Content	1
Diode capacitance C(D)	10pF
Enclosure	SOT 23
Forward current I(F)	0.10A
Forward Voltage U(F)	1V
Maximum Operating Temperature	150°C
Mounting Type	Surface-mount
Peak forward surge Current I(FSM)	0.60A
Product Type	Schottky diode
Reverse leakage Current I(r)	2µA
Reverse Voltage U(R)	25V
