Diotec BAT54AW Schottky diode SOT 323 30 V Schottky Diodes

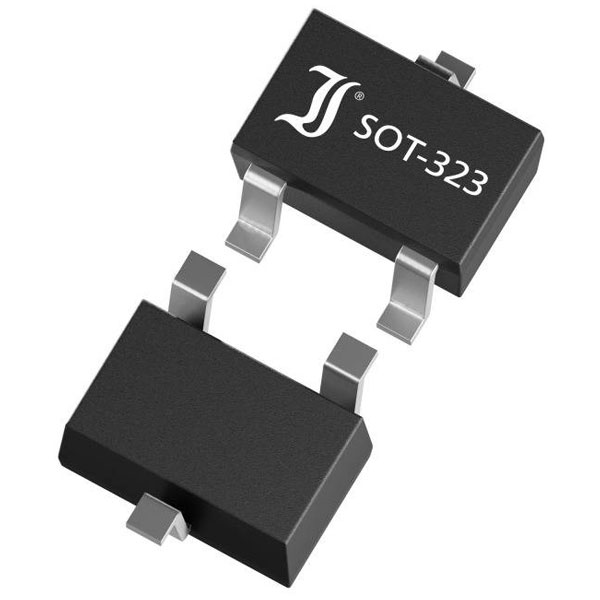

Diotec BAT54AW is a Schottky diode designed in the SOT-323 package, capable of withstanding reverse voltages up to 30 V. This compact diode is optimised for low forward voltage drop and fast switching speed, making it an ideal choice for applications where efficiency is critical. The BAT54AW is commonly used in power management circuits as a blocking diode, in signal demodulation, and as a part of switch-mode power supplies. Its planar Schottky barrier offers superior performance characteristics compared to conventional p-n junction diodes, providing improved thermal stability and reduced power losses. The combination of its features makes it suitable for high-frequency applications and miniaturised electronic devices.

Type	Schottky diode
Content	1
Enclosure	SOT 323
Forward current I(F)	0.10A
Forward Voltage U(F)	0.65V
Mounting Type	Surface-mount
Operating temperature (max.)	150°C
Peak forward surge Current I(FSM)	1A
Product Type	Schottky diode
Reverse leakage Current I(r)	3µA
Reverse Voltage U(R)	30V
