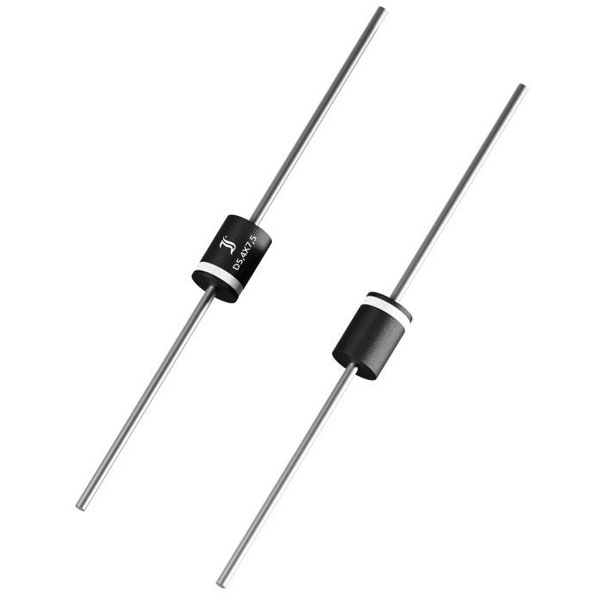

Diotec 80SQ05 Schottky diode 80SQ05 50 V D5.4x7.5

Diotec 80SQ05 is a Schottky diode designed for efficient performance in various electronic applications. The diode features a forward voltage drop that is significantly lower than that of standard p-n junction diodes, which reduces power loss and improves efficiency in power rectification tasks. With a voltage rating of 50 V and encased in a D5.4x7.5 package, the 80SQ05 is optimised for applications requiring reliable blocking capabilities, such as in power supplies, voltage clamping, and free-wheeling diodes in motor controllers. Its Schottky barrier construction facilitates rapid switching, making it an ideal choice for high-frequency applications where heat dissipation and energy conservation are critical considerations.

Type	Schottky diode
Content	1
Enclosure	D5.4x7.5
Forward current I(F)	8A
Forward Voltage U(F)	0.55V
Maximum Operating Temperature	150°C
Mounting Type	Through-hole mounting
Peak forward surge Current I(FSM)	155A
Product Type	Schottky diode
Reverse leakage Current I(r)	500µA
Reverse Voltage U(R)	50V
