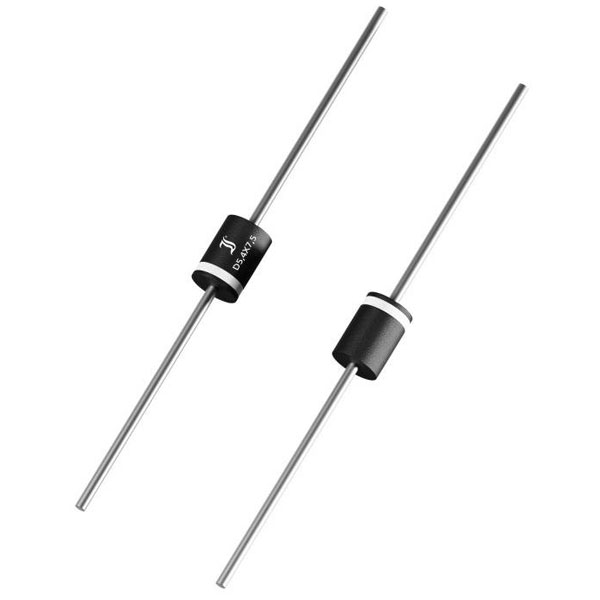

Diotec 15SQ045-3G Schottky diode 45V D5.4x7.5 efficient rectification

Diotec 15SQ045-3G is a Schottky diode designed for efficient rectification in electrical and electronic circuits. This diode features a compact D5.4x7.5 package, ensuring it is suitable for space-constrained applications, and operates with a maximum reverse voltage of 45 volts. Utilising Schottky technology, it provides low forward voltage drop and minimal power dissipation, making it ideal for high-efficiency power supplies, DC-DC converters, and as a blocking diode in photovoltaic systems. The diode’s Schottky P-N junction allows for fast switching and reduced junction capacitance, enhancing the performance and reliability of high-frequency applications. These attributes make the Diotec 15SQ045-3G an excellent choice for engineers seeking robust and efficient rectification solutions.

Type	Schottky diode
Content	1
Diode capacitance C(D)	720pF
Enclosure	D5.4x7.5
Forward current I(F)	15A
Forward Voltage U(F)	0.55V
Maximum Operating Temperature	150°C
Mounting Type	Through-hole mounting
Peak forward surge Current I(FSM)	290A
Product Type	Schottky diode
Reverse leakage Current I(r)	200µA
Reverse Voltage U(R)	45V
