Dehner Elektronik SS 20-24VF LED Transformer 20W 0.83A 24V DC Compact Design

Dehner Elektronik
Order Code:

02-4712

Brand: Dehner Elektronik MPN: SS 20-24VF EAN-13: 4251125203203
Qty Unit Price (Ex VAT)
1+ £13.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

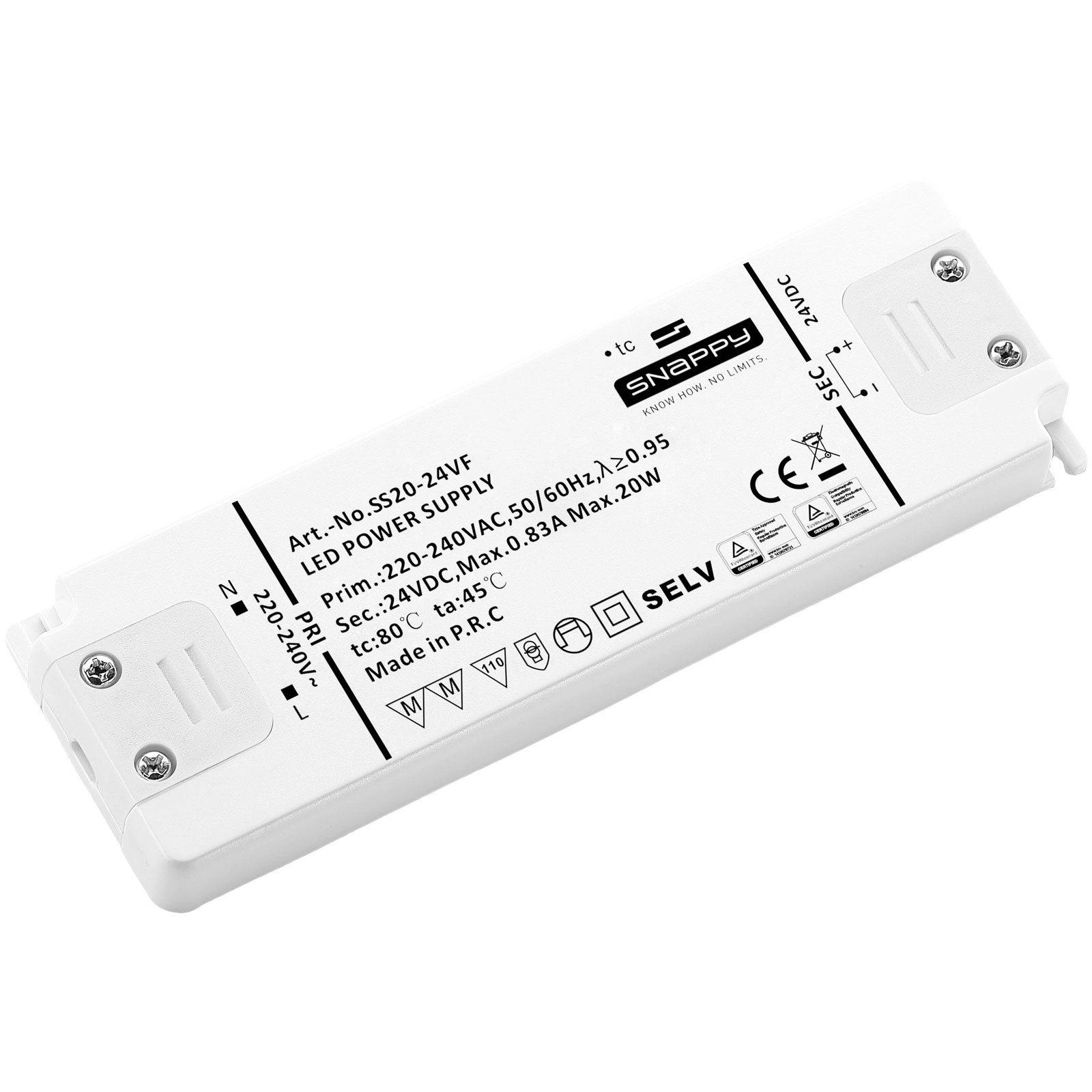

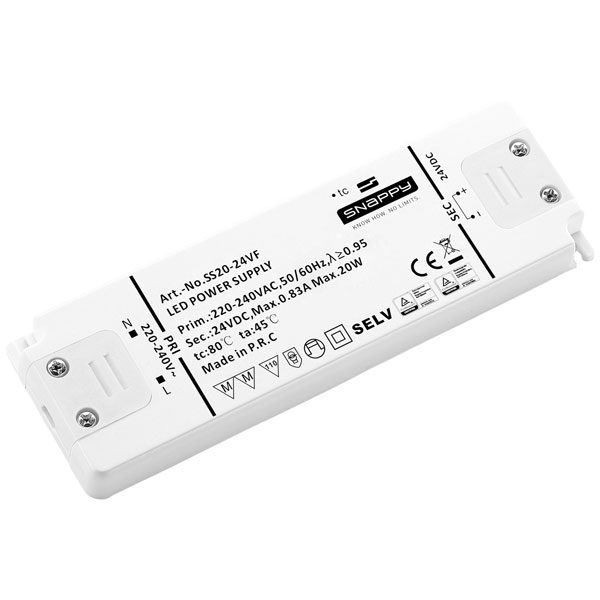

The Dehner Elektronik SS 20-24VF LED transformer is a constant voltage unit with a 20 W output and provides 0.83 A at 24 V DC. It features built-in surge protection and is approved for use on furniture. This LED power supply is ideal for powering LED strips and other low-voltage LED applications.
Type LED transformer
Connection Screw terminal
Dim (L x W x H) 155 x 50 x 15 mm
Factory colour White
Height 15mm
Input voltage (max.) 240V AC
IP Rating IP20
Length 155mm
Max. output current 0.83A
Max. power 20W
Max. temperature 45°C
Min. input voltage 220V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Switched PSU
Number of Inputs 1
Number of Outputs 1
Operating Voltage 240V AC
Output current (max.) - rounded 830mA
Output voltage (max.) 24V DC
Power range 20 W (max)
Protection Class IP20
Test mark MM; SELV; CE; GS
Width 50mm
