DEGSON WS10-PE-01P-1C-00A(H) PG Terminal Spring-loaded Green/Yellow

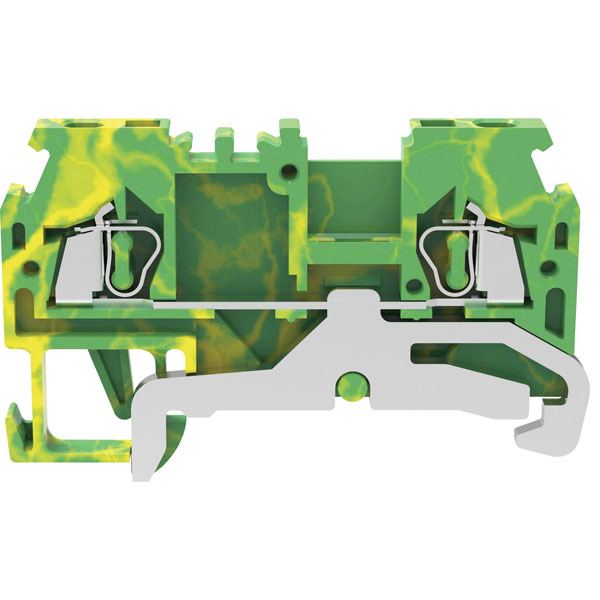

Image Representative of Range

DEGSON WS10-PE-01P-1C-00A(H) PG Terminal Spring-loaded Green/Yellow

Degson
Standard range
Order Code:

02-4522

Brand: Degson MPN: WS10-PE-01P-1C-00A(H)
Qty Unit Price (Ex VAT)
1+ £2.16
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
19 in stock, despatched in 4 working days

The DEGSON WS10-PE-01P-1C-00A(H) PG terminal is a green and yellow spring-loaded terminal designed for ensuring continuity in electrical connections. Manufactured by DEGSON, it is typically used in switchboards and serial terminals. This terminal is suitable for various industrial and commercial applications requiring reliable electrical connectivity.
Type PG terminal
Width 10mm
AWG (min.) 24
AWG max. 8
Connection Spring-loaded terminal
Cross section (flexible) (max.) 10mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 10mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W x H) 78 x 10 x 42.5 mm
Height 42.5mm
Length 78mm
Manufacturer part # WS10-PE-01P-1C-00A(H)
Min. stripping length 12mm
Misc Attribute WS10-PE-01P-1C-00A(H)
Number of pins 1
Rated surge voltage 8kV
RoHS-compliant Yes
Stripping length (max.) 12mm
Weight 1g
