DEGSON PC50-01P-11-00A(H) High Power Terminal Screw Grey 1pc

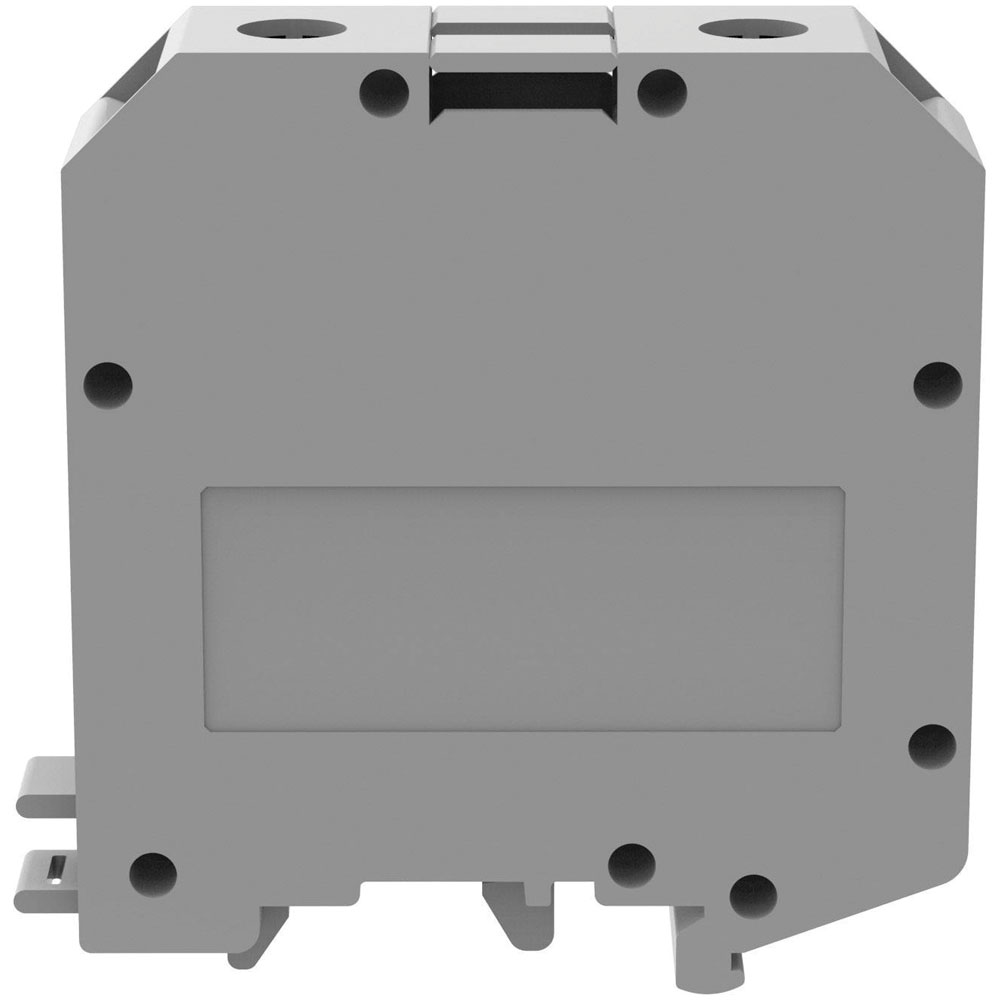

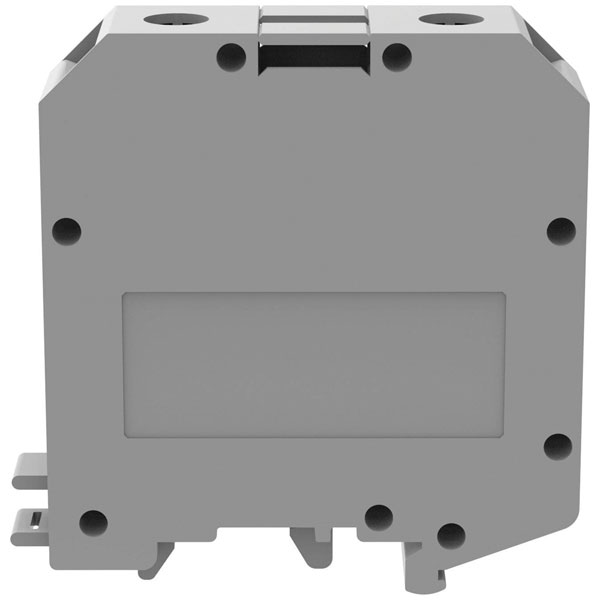

Image Representative of Range

DEGSON PC50-01P-11-00A(H) High Power Terminal Screw Grey 1pc

Degson
Standard range
Order Code:

02-4514

Brand: Degson MPN: PC50-01P-11-00A(H)
Qty Unit Price (Ex VAT)
1+ £7.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
15 in stock, despatched in 4 working days

The DEGSON PC50-01P-11-00A(H) is a high power terminal with a screw terminal connection, designed for maintaining continuity in electrical systems. It comes in a grey colour and is typically used in switchboards and serial terminals. The terminal is noted for its reliability in high power applications.
Type High power terminal
Width 20mm
AWG (min.) 6
AWG max. 1
Connection Screw terminal
Cross section (flexible) (max.) 50mm²
Cross section (flexible) (min.) 25mm²
Cross section (inflexible) (max.) 50mm²
Cross section (inflexible) (min.) 25mm²
Dim (L x W x H) 70.5 x 20 x 83.5 mm
Factory colour Grey
Height 83.5mm
Length 70.5mm
Manufacturer part # PC50-01P-11-00A(H)
Min. stripping length 24mm
Misc Attribute PC50-01P-11-00A(H)
Nominal current - rounded value NaNA
Number of pins 1
Rated surge voltage 8kV
RoHS-compliant Yes
Stripping length (max.) 24mm
Weight 1g
