DEGSON PC10-01P-12-00AH-1 Continuity 10.2mm Blue Screws 1pc

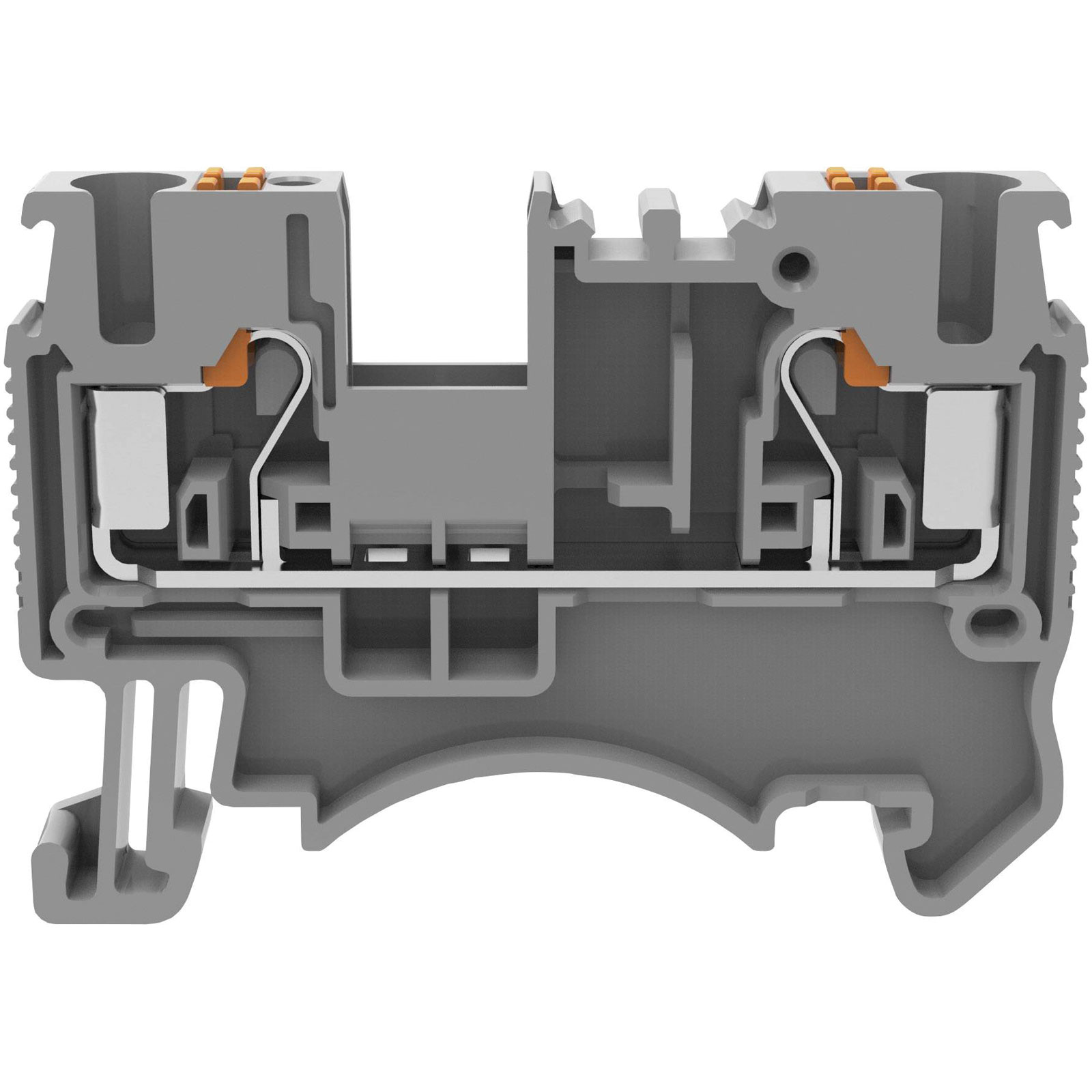

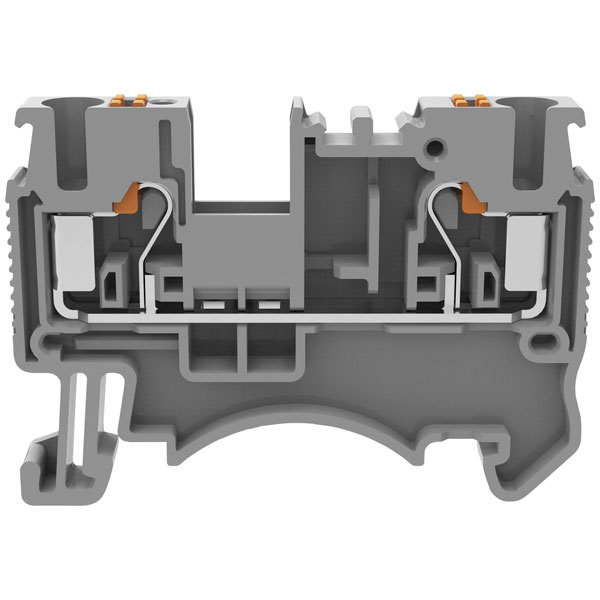

Image Representative of Range

DEGSON PC10-01P-12-00AH-1 Continuity 10.2mm Blue Screws 1pc

Degson
Standard range
Order Code:

02-4500

Brand: Degson MPN: PC10-01P-12-00AH-1
Qty Unit Price (Ex VAT)
1+ £1.62
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
101 in stock, despatched in 4 working days

The DEGSON PC10-01P-12-00AH-1 is a blue terminal block designed for continuity with a 10.2 mm screw connection. Manufactured by DEGSON, it is suited for use on DIN rails, offering reliable connectivity in electrical assemblies. This product is typically employed in switchboards and serial terminals for secure and organised wiring solutions.
Type Continuity
Width 10.20mm
AWG (min.) 20
AWG max. 6
Clamp width 10.2mm
Connection Screws
Contamination level 3
Cross section (flexible) (max.) 4mm²
Cross section (flexible) (min.) 0.5mm²
Cross section (inflexible) (max.) 4mm²
Cross section (inflexible) (min.) 0.5mm²
Dim (L x W x H) 42.50 x 10.20 x 46.00 mm
Factory colour Blue
Height 46.00mm
Length 42.50mm
Manufacturer part # PC10-01P-12-00AH-1
Min. stripping length 10mm
Misc Attribute PC10-01P-12-00AH
No. of rows 1
Nominal current 57A
Nominal current - rounded value 57A
Nominal voltage 800
Number of pins 1
Pins per row 1
Rated surge voltage 8kV
RoHS-compliant Yes
Stripping length (max.) 10mm
Weight 16.50g
