DEGSON DSKK4-01P-12-50-A(H) Dual Port Continuity Push-in Connector Blue

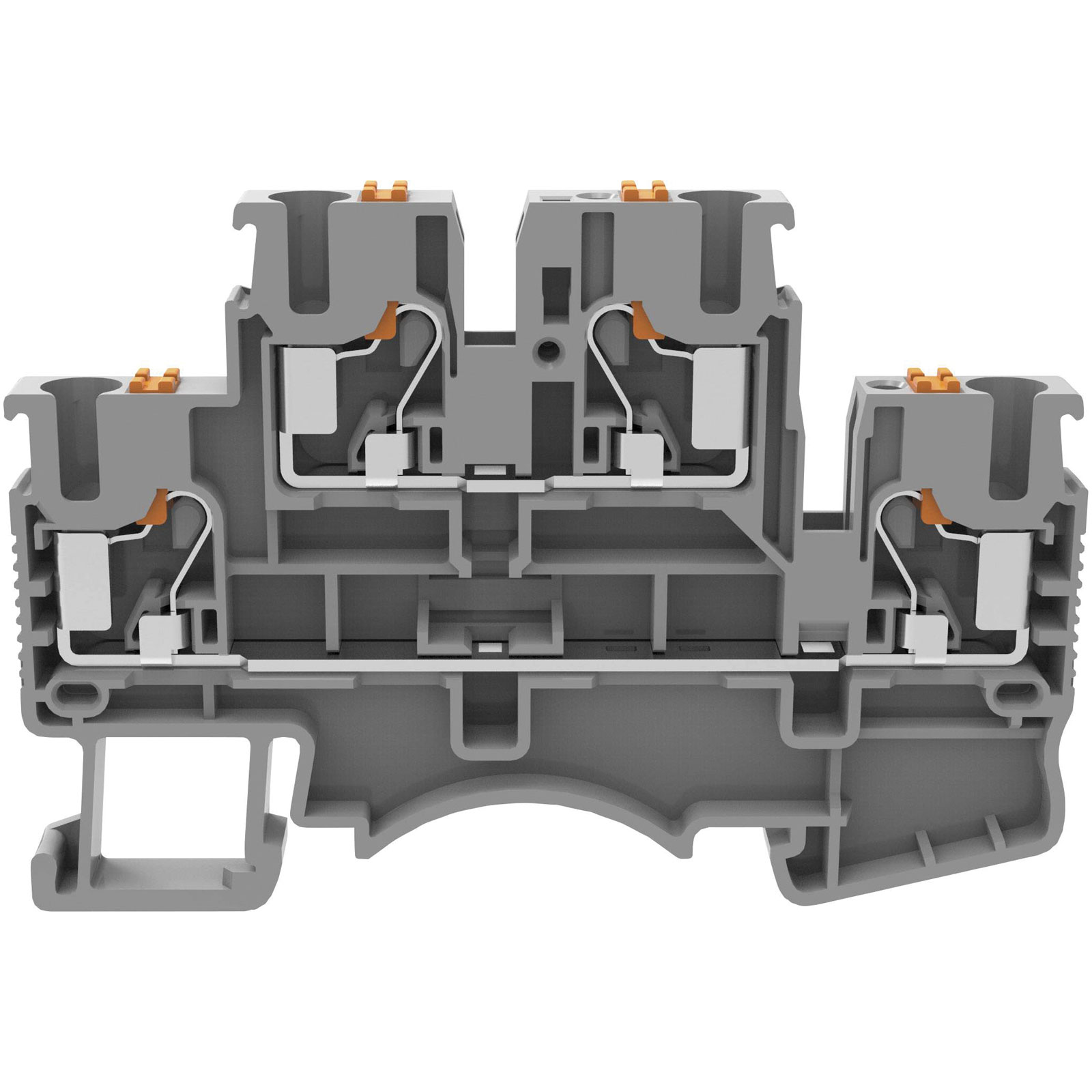

Image Representative of Range

DEGSON DSKK4-01P-12-50-A(H) Dual Port Continuity Push-in Connector Blue

Degson
Standard range
Order Code:

02-4478

Brand: Degson MPN: DSKK4-01P-12-50-A(H)
Qty Unit Price (Ex VAT)
1+ £2.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
154 in stock, despatched in 4 working days

Manufactured by DEGSON, the DSKK4-01P-12-50-A(H) is a blue dual port continuity push-in connector. This component is designed for use in serial and switchboard terminals, providing secure and efficient electrical connections. Ideal for applications requiring reliable continuity, this connector simplifies electrical set-ups with its push-in design.
Type Dual port continuity
Width 6.2mm
AWG (min.) 24
AWG max. 10
Connection Push-in connector
Cross section (flexible) (max.) 4mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 6mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W x H) 77 x 6.2 x 36.5 mm
Factory colour Blue
Height 36.5mm
Length 77mm
Manufacturer part # DSKK4-01P-12-50-A(H)
Min. stripping length 12mm
Misc Attribute DSKK4-01P-12-50-A(H)
Nominal current - rounded value NaNA
Number of pins 1
Rated surge voltage 6kV
RoHS-compliant Yes
Stripping length (max.) 12mm
Weight 1g
