DEGSON DS4-TW-01P-11-00A(H) Push-in Connector Grey Continuity 1pc(s)

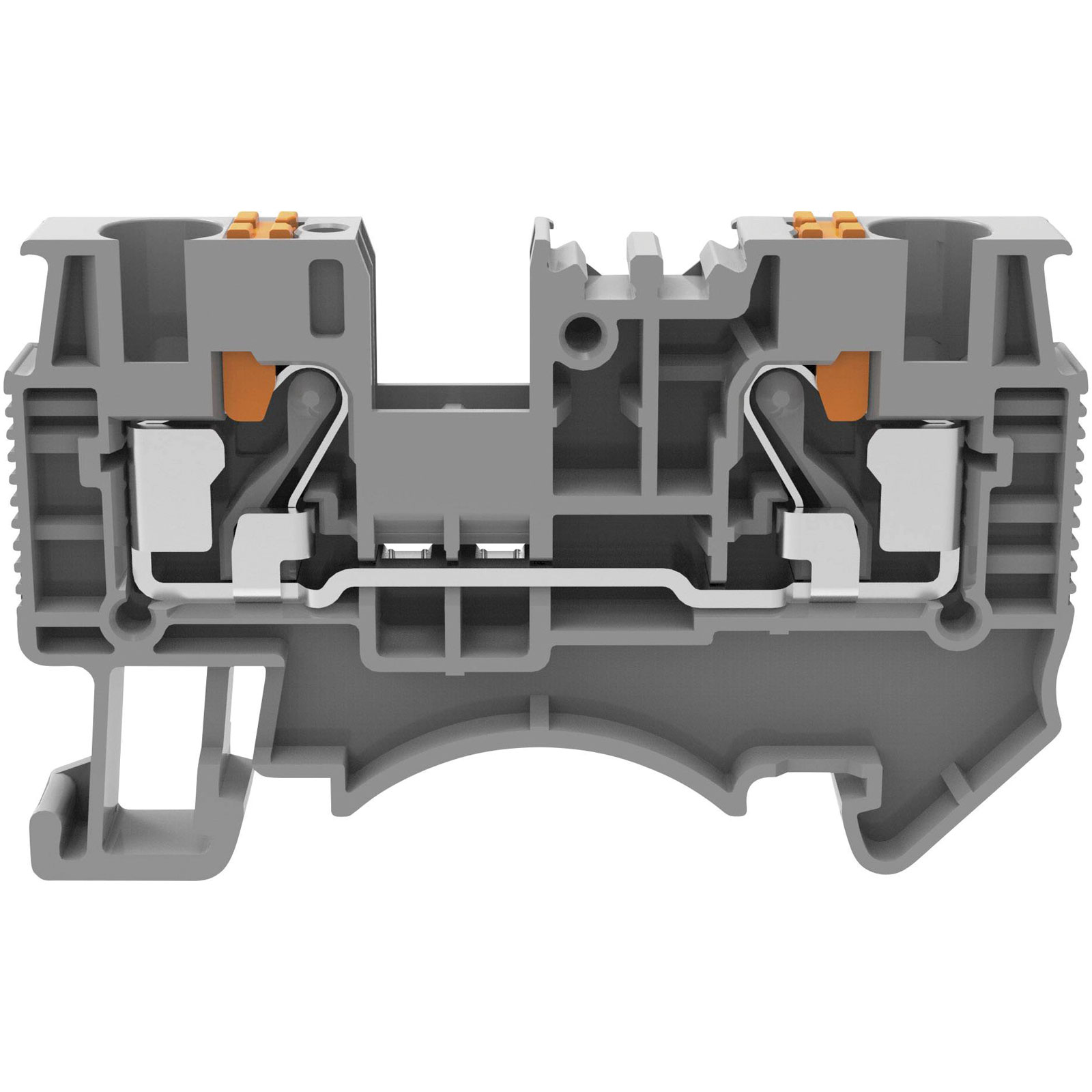

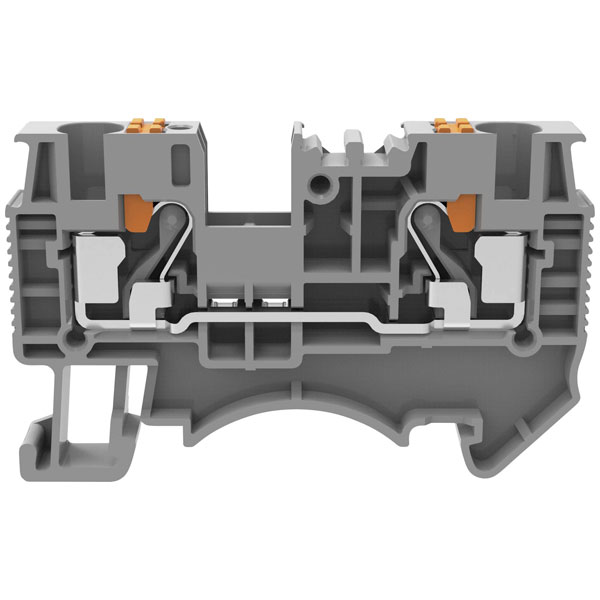

Image Representative of Range

DEGSON DS4-TW-01P-11-00A(H) Push-in Connector Grey Continuity 1pc(s)

Degson
Standard range
Order Code:

02-4466

Brand: Degson MPN: DS4-TW-01P-11-00A(H)
Qty Unit Price (Ex VAT)
1+ £1.69
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
131 in stock, despatched in 4 working days

Manufactured by DEGSON, the DS4-TW-01P-11-00A(H) is a grey push-in connector designed for continuity applications. This serial terminal is commonly used in switchboard terminals to ensure stable electrical connections. Ideal for use in various control panel and distribution board setups, it offers reliable performance in maintaining circuit continuity.
Type Continuity
Width 6.2mm
AWG (min.) 26
AWG max. 10
Connection Push-in connector
Cross section (flexible) (max.) 4mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 6mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W x H) 66.5 x 6.2 x 37 mm
Factory colour Grey
Height 37mm
Length 66.5mm
Manufacturer part # DS4-TW-01P-11-00A(H)
Min. stripping length 12mm
Misc Attribute DS4-TW-01P-11-00A(H)
Nominal current - rounded value NaNA
Number of pins 1
Rated surge voltage 8kV
RoHS-compliant Yes
Stripping length (max.) 12mm
Weight 1g
