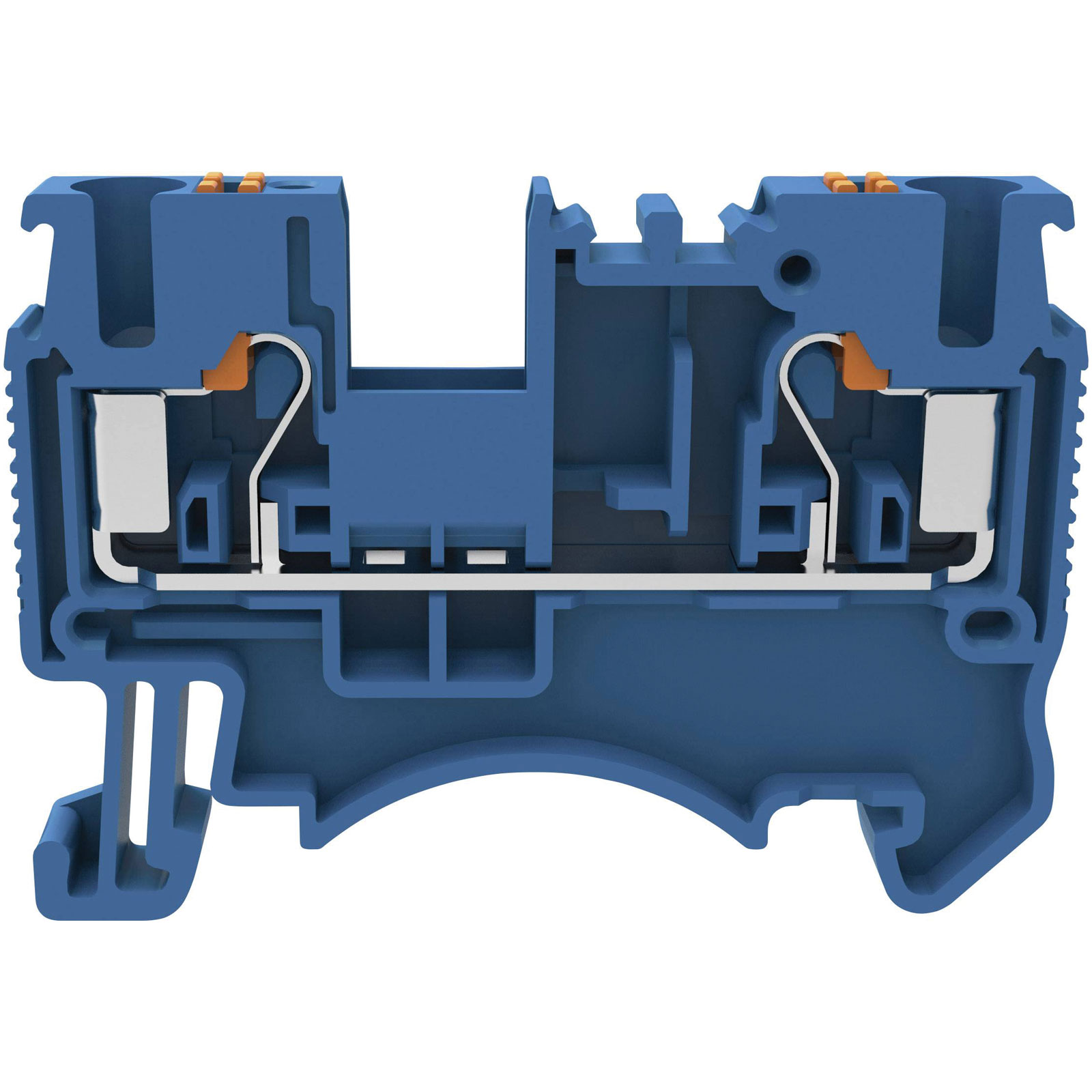

DEGSON DS2.5-QU-01P-12-00A(H) Push-in Connector Blue Continuity 1pc

The DEGSON DS2.5-QU-01P-12-00A(H) is a blue push-in connector designed for ensuring continuity in electrical connections. Manufactured by DEGSON, this component is ideal for use in serial and switchboard terminals. It is typically applied in various electrical and electronic systems for efficient and secure wiring solutions.

Type	Continuity
Pitch	5.2mm
No. of Ways	2
No. of Levels	1
Termination	Push-in Cage clamp
Width	5.2mm
Wire Gauge (mm²)	2.5mm²
AWG (min.)	26
Colour	Blue
Connection	Push-in connector
Cross section (flexible) (max.)	2.5mm²
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (max.)	4mm²
Cross section (inflexible) (min.)	0.2mm²
Current Rating	NaNA
Dim	(L x W x H) 72.2 x 5.2 x 37 mm
Height	37mm
Length	72.2mm
Maximum Wire Size AWG	12
Min. stripping length	10mm
Number of pins	1
Number of Rows	1
Rated Surge Voltage	8kV
Stripping length (max.)	10mm
Wire Gauge (AWG)	12
