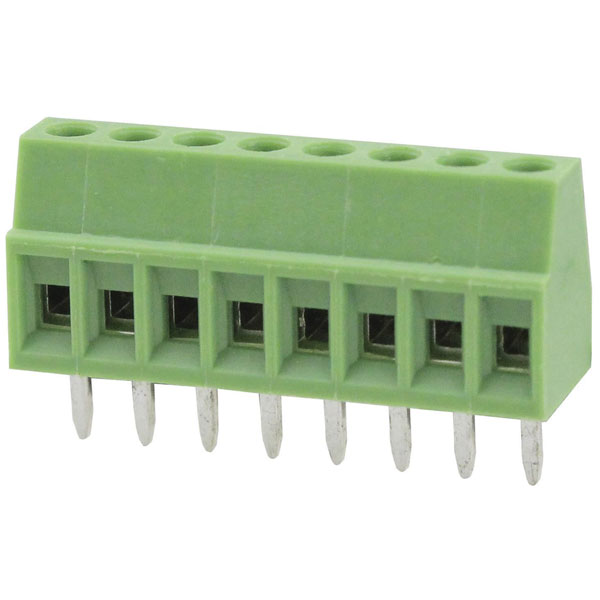

DEGSON DG308-2.54-08P-14-00AH-1 Screw Terminal 8 Pins 0.82 mm² Green

Image Representative of Range

DEGSON DG308-2.54-08P-14-00AH-1 Screw Terminal 8 Pins 0.82 mm² Green

Degson
Order Code:

02-4423

Brand: Degson MPN: DG308-2.54-08P-14-00AH-1 EAN-13: 2050003390293
Qty Unit Price (Ex VAT)
3+ £1.44
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
327 in stock, despatched in 4 working days

DEGSON manufactures the DG308-2.54-08P-14-00AH-1 screw terminal, featuring a green housing and eight pins, suitable for 0.82 mm² wires. This PCB terminal is commonly used in printed circuit boards for efficient and secure electrical connections. Typical applications include electronic equipment and control panels.
Actuation direction Perpendicular (to the PCB)
AWG (min.) 26
AWG max. 18
Connector orientation Parallel (to the PCB)
Contact Material Brass tin plated
Cross section (flexible) (max.) 0.82mm²
Cross section (flexible) (min.) 0.12mm²
Cross section (inflexible) (max.) 0.82mm²
Cross section (inflexible) (min.) 0.12mm²
CS 2.54mm
Enclosure material Polyamide 6.6
Factory colour Green
Height 12.05mm
Length 6.30mm
Min. stripping length 4mm
Misc Attribute DG308-2.54-08P-14-00AH
Nominal Current 6A
Nominal current - rounded value 6A
Nominal Voltage 150V
Number of Pins 8
Number of Rows 1
Pins per row 8
Series DG127
Stripping length (max.) 4mm
Type Screw terminal
Width 20.80mm
Wire protection Yes
