DEGSON 2EDGKB-5.0-04P-14-1000AH-1 Pin Housing 4-Pin 5mm Spacing Cable

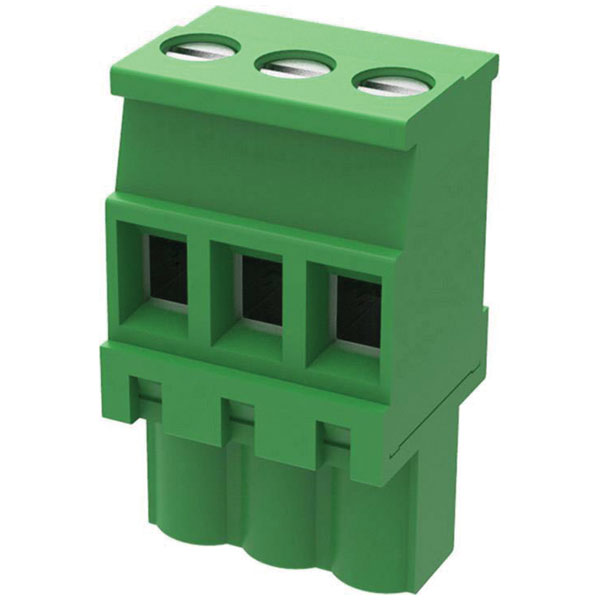

Image Representative of Range

DEGSON 2EDGKB-5.0-04P-14-1000AH-1 Pin Housing 4-Pin 5mm Spacing Cable

Degson
Standard range
Order Code:

02-4271

Brand: Degson MPN: 2EDGKB-5.0-04P-14-1000AH-1
Qty Unit Price (Ex VAT)
1+ £1.26
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
121 in stock, despatched in 4 working days

DEGSON's 2EDGKB pin housing cable is a precision-engineered connector featuring four pins with a contact spacing of 5 mm. This component is ideal for applications requiring reliable electrical connections and is commonly used in control panels and industrial equipment. Renowned for its durability and functionality, it ensures stability and robust performance.
No. of rows 1
AWG (min.) 28
AWG max. 12
Case material PA 66 UL94V-0
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 5mm
Dim (L x W x H) 26 x 14 x 12.60 mm
Factory colour Green
Height 12.60mm
Industrial packaging No
Insulation material PA 66 UL94V-0
Length 26mm
Manufacturer part # 2EDGKB-5.0-04P-14-1000AH-1
max. cross section 2.50mm²
Max. temperature +105°C
Min. cross section 1mm²
Min. temperature -40°C
Misc Attribute 2EDGKB-5.0-04P-14-1000AH-1
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 300V
Pins per row 4
RoHS-compliant Yes
Series 2EDGKB
Stripping length (max.) 8mm
Thread Size M3
Total number of pins 4
Type Pin housing cable
Width 14mm
