DEGSON 2EDGK-5.08-10P-14-00AH-1 Pin Housing 10 Pins 5.08mm Spacing

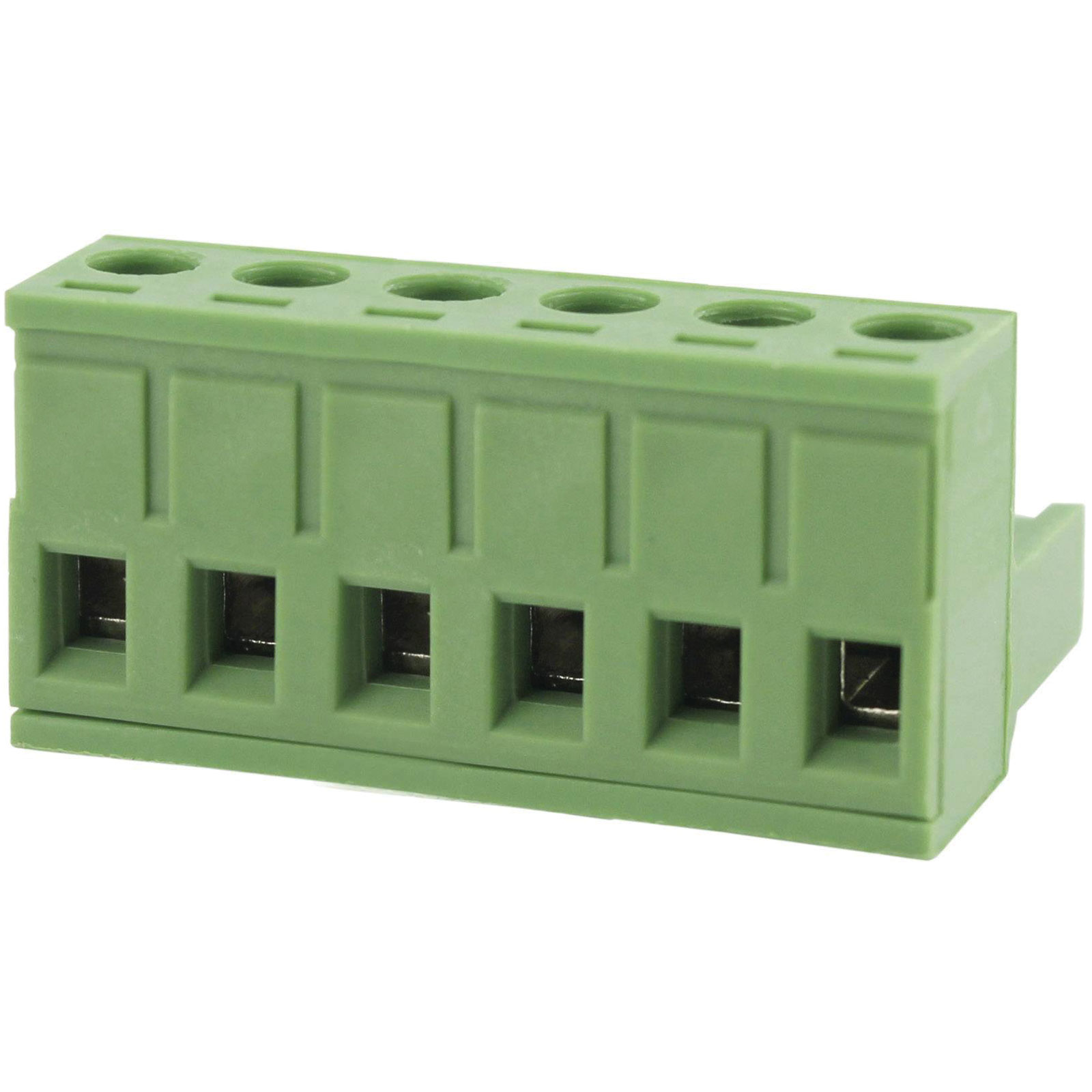

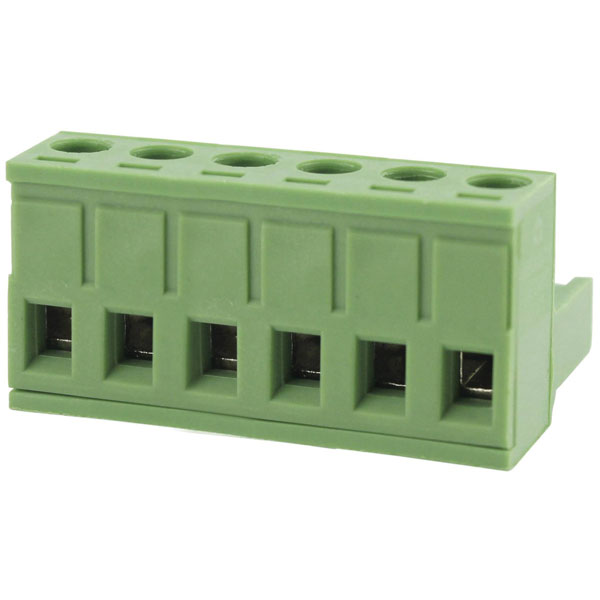

Image Representative of Range

DEGSON 2EDGK-5.08-10P-14-00AH-1 Pin Housing 10 Pins 5.08mm Spacing

Degson
Standard range
Order Code:

02-4261

Brand: Degson MPN: 2EDGK-5.08-10P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £1.91
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
53 in stock, despatched in 4 working days

DEGSON manufactures the 2EDGK-5.08-10P-14-00AH-1 pin housing cable, featuring 10 pins and a contact spacing of 5.08 mm. Its plug-in terminal design makes it ideal for use in lift systems and elevators. This product is part of DEGSON's range of reliable pluggable screw terminals and Combicon PCB terminals.
No. of rows 1
AWG (min.) 28
AWG max. 12
Case material PA 66 UL94V-0
Compatible with (details) 28 - 12
Connection Screw terminal
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 5.08mm
Dim (L x W x H) 17.40 x 50.80 x 15.10 mm
Factory colour Green
Height 15.10mm
Length 17.40mm
Manufacturer part # 2EDGK-5.08-10P-14-00AH-1
max. cross section 1.5mm²
Min. cross section 1mm²
Misc Attribute 2EDGK-5.08-10P-14-00AH
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 300V
Pins per row 10
RoHS-compliant Yes
Stripping length (max.) 7.00mm
Total number of pins 10
Type Pin housing cable
Width 50.80mm
