DEGSON 15EDGKD-3.81-02P-14-00AH-1 Pin Housing 2 Pins 3.81mm Spacing

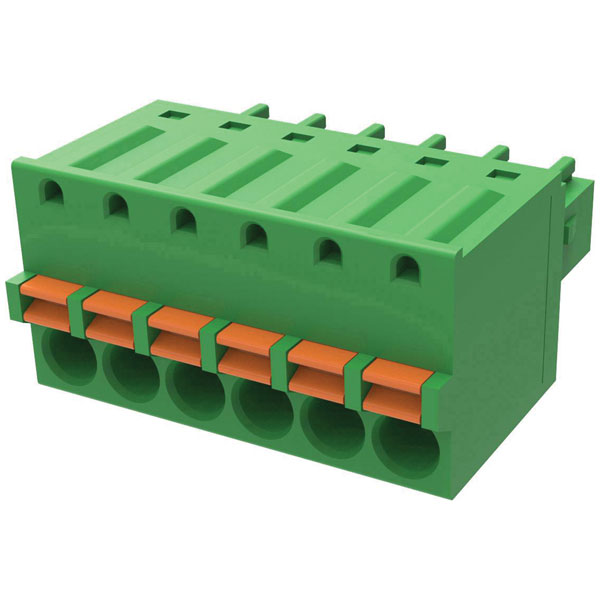

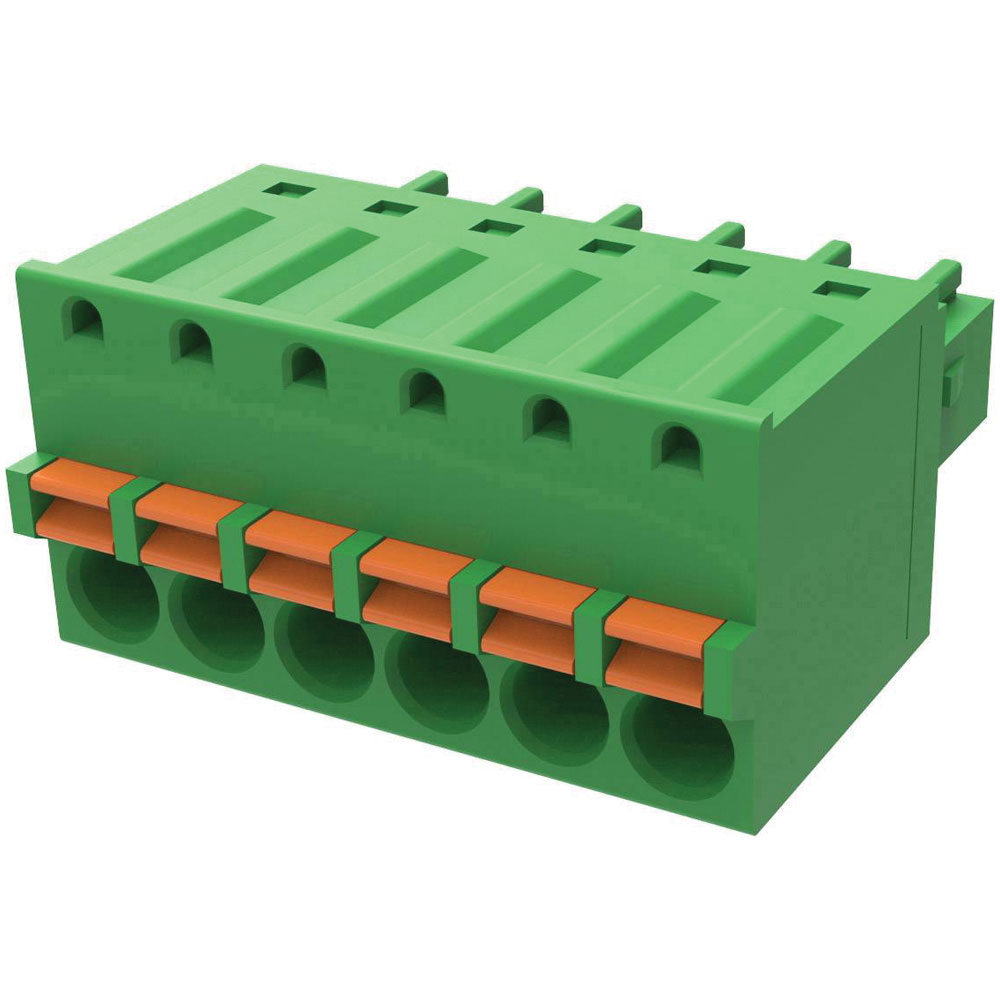

Image Representative of Range

DEGSON 15EDGKD-3.81-02P-14-00AH-1 Pin Housing 2 Pins 3.81mm Spacing

Degson
Standard range
Order Code:

02-4179

Brand: Degson MPN: 15EDGKD-3.81-02P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £0.693
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
87 in stock, despatched in 4 working days

DEGSON manufactures the 15EDGKD-3.81-02P-14-00AH-1 pin housing cable, which features a total of 2 pins and a contact spacing of 3.81 mm. This component is typically used in electrical and electronic applications for secure and efficient connections. Its compact design ensures easy assembly and reliable performance in various settings.
No. of rows 1
AWG (min.) 28
AWG max. 16
Case material PA 66 UL94V-0
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 3.81mm
Dim (L x W) 20.80 mm x 8.50 mm
Factory colour Green
Industrial packaging No
Insulation material PA 66 UL94V-0
Length 20.80mm
Manufacturer part # 15EDGKD-3.81-02P-14-00AH-1
max. cross section 1.50mm²
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -40°C
Misc Attribute 15EDGKD-3.81-02P-14-00AH-1
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 2
RoHS-compliant Yes
Series 15EDGKD
Stripping length (max.) 8mm
Total number of pins 2
Type Pin housing cable
Width 8.50mm
