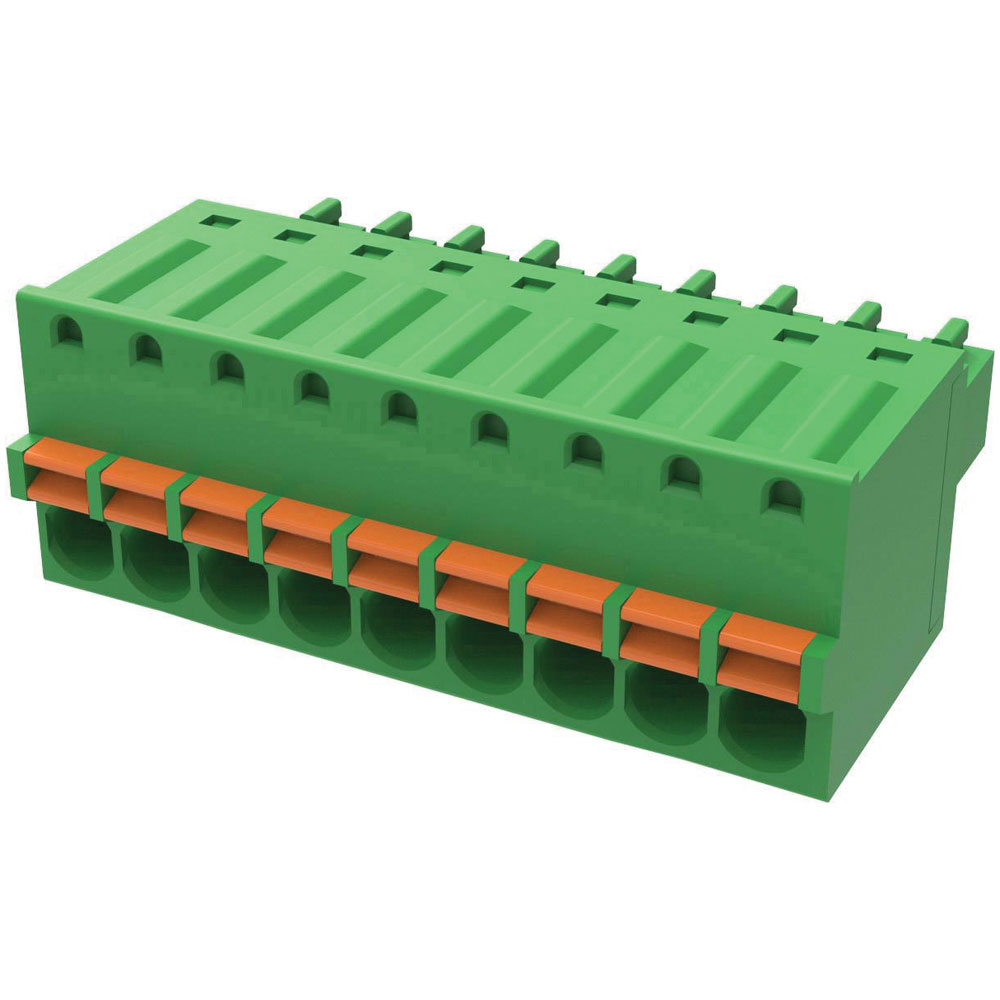

DEGSON 15EDGKD-3.5-08P-14-00AH-1 8-Pin Housing Cable 3.5mm Spacing

Image Representative of Range

DEGSON 15EDGKD-3.5-08P-14-00AH-1 8-Pin Housing Cable 3.5mm Spacing

Degson
Standard range
Order Code:

02-4177

Brand: Degson MPN: 15EDGKD-3.5-08P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £2.43
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
86 in stock, despatched in 4 working days

The DEGSON 15EDGKD-3.5-08P-14-00AH-1 pin housing cable features 8 pins with a contact spacing of 3.50 mm, ideal for connecting circuit elements. Manufactured for reliability and precision, it is suitable for use in industrial and electronic applications where secure electrical connections are paramount. This component is a single unit, designed to ensure consistent performance and durability.
No. of rows 1
AWG (min.) 28
AWG max. 16
Case material PA 66 UL94V-0
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 3.50mm
Dim (L x W) 20.80 mm x 21.80 mm
Factory colour Green
Industrial packaging No
Insulation material PA 66 UL94V-0
Length 20.80mm
Manufacturer part # 15EDGKD-3.5-08P-14-00AH-1
max. cross section 1.50mm²
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -40°C
Misc Attribute 15EDGKD-3.5-08P-14-00AH-1
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 8
RoHS-compliant Yes
Series 15EDGKD
Stripping length (max.) 8mm
Total number of pins 8
Type Pin housing cable
Width 21.80mm
