DEGSON 15EDGKD-2.5-02P-14-00AH-1 Pin Housing 2 Pins 2.50mm Spacing

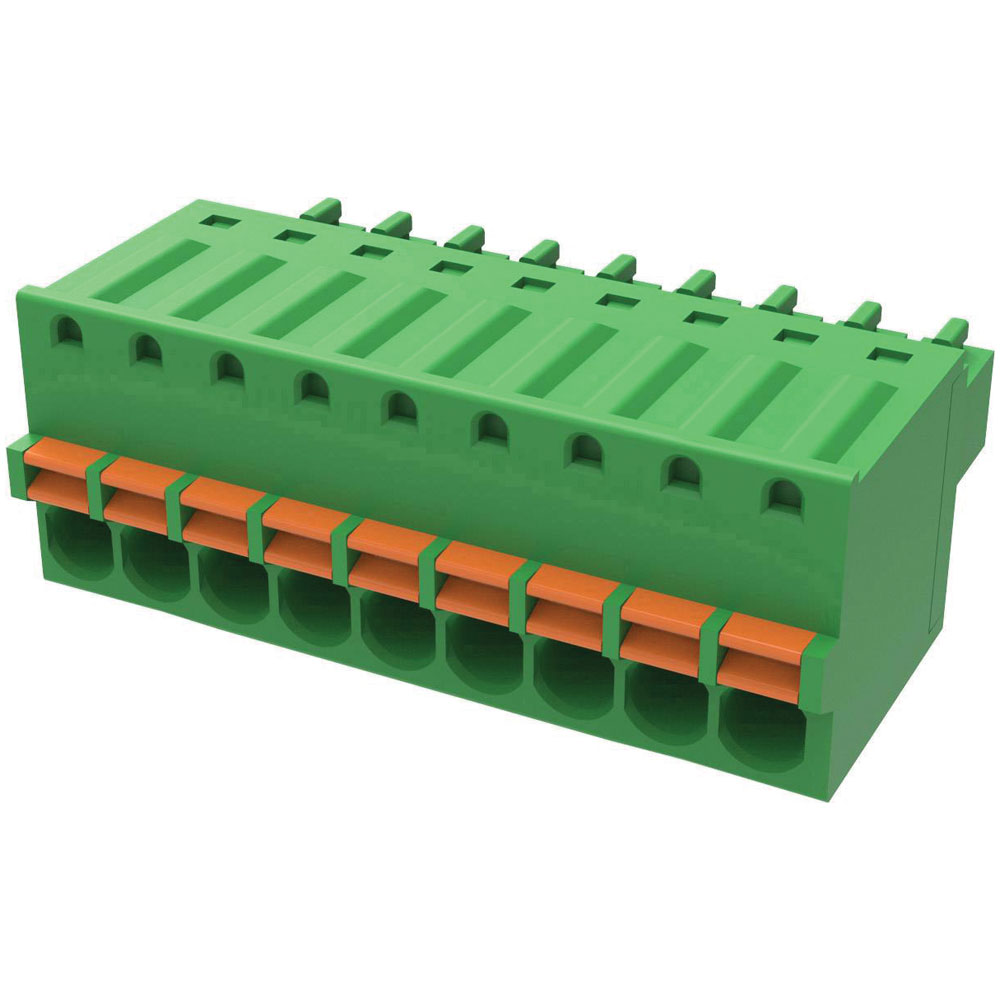

Image Representative of Range

DEGSON 15EDGKD-2.5-02P-14-00AH-1 Pin Housing 2 Pins 2.50mm Spacing

Degson
Standard range
Order Code:

02-4163

Brand: Degson MPN: 15EDGKD-2.5-02P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £0.721
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
207 in stock, despatched in 4 working days

The DEGSON 15EDGKD-2.5-02P-14-00AH-1 pin housing cable features 2 pins and a contact spacing of 2.50 mm. Known for its robust construction, this component provides reliable connections for electrical circuits. It is typically used in various electronic and industrial applications where secure and efficient cable connections are required.
No. of rows 1
AWG (min.) 26
AWG max. 20
Case material PA 66 UL94V-0
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 2.50mm
Dim (L x W) 19 mm x 7.10 mm
Factory colour Green
Industrial packaging No
Insulation material PA 66 UL94V-0
Length 19mm
Manufacturer part # 15EDGKD-2.5-02P-14-00AH-1
max. cross section 0.50mm²
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -40°C
Misc Attribute 15EDGKD-2.5-02P-14-00AH-1
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 150V
Pins per row 2
RoHS-compliant Yes
Series 15EDGKD
Stripping length (max.) 8mm
Total number of pins 2
Type Pin housing cable
Width 7.10mm
