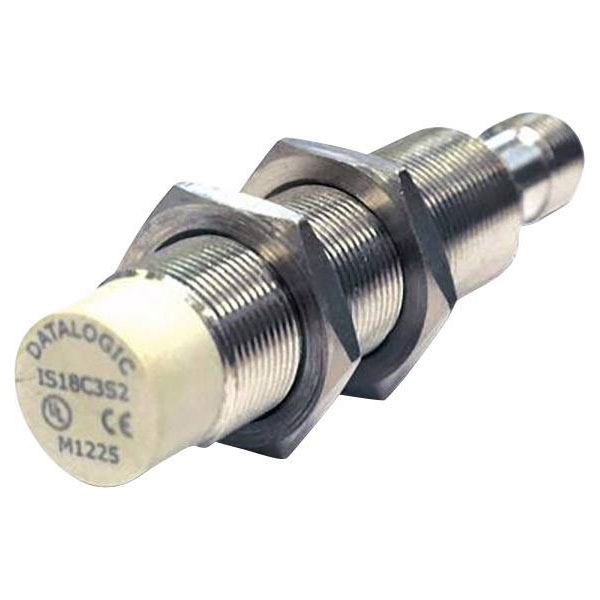

Datalogic 95B062151 Basic Inductive Proximity Sensor M18 PNP Nickel-Plated

Datalogic
Standard range
Order Code:

08-8737

Brand: Datalogic MPN: 95B062151 EAN-13: 2050004555592
Qty Unit Price (Ex VAT)
1+ £26.07
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Datalogic Inductive Proximity Sensor IS-18-B1-S2 is a shielded, PNP-type component designed for precise inductive proximity detection. It is commonly used in automation for detecting metal objects without physical contact. Its robust design makes it suitable for industrial environments.
Type Inductive proximity sensor
(Ø) 18mm
Connector M12 (3-pin)
Contact type 1 maker
Dim (Ø x L) 18 mm x 56.4 mm
Enclosure material Brass
Installation type shielded
IP rating IP67
Length 56.4mm
Material properties nickel plated
Max. operating voltage 30V DC
Max. temperature +60°C
Min. operating voltage 10V DC
Min. temperature -25°C
Misc Attribute IS-18-B1-S2
Operating voltage 10 - 30 V DC
Outputs PNP
Size M18
Switching distance (max.) 5mm
Switching Frequency 1000Hz
