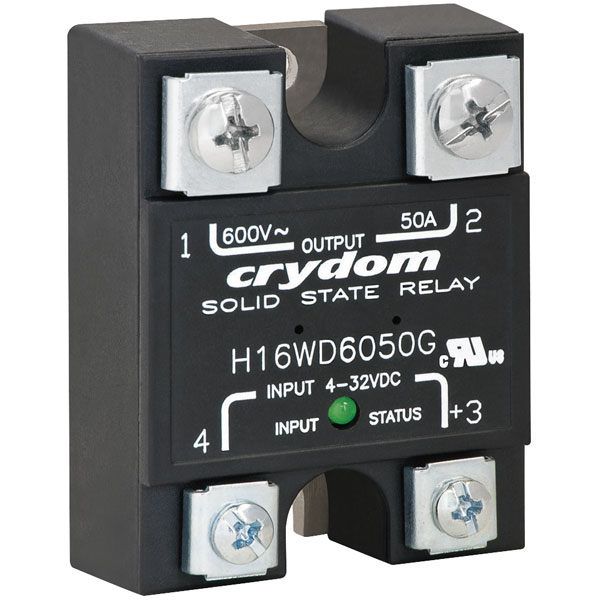

Image Representative of Range

Crydom H16WD6090G Solid State Relay 66VAC 90A Max, 4-32VDC Control Voltage

MPN: H16WD6090G
Brand: Crydom
EAN-13: 2050001474001
Order Code: 49-3543
Country of Origin: Mexico

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£168.28
10+	£163.39
20+	£162.47

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 3 in stock

Product Details
Data Sheets

Sensata Crydom H16WD6090G is a solid-state relay designed for high voltage and current applications.

It handles up to 660VAC and 90A, making it suitable for heavy-duty operations.

The panel mount design ensures ease of installation and reliability.

Typical applications include industrial machinery and HVAC systems.

Zero cross turn-on
Input status LED
aluminium baseplate

Type	SSR
Input Voltage	32V
Switching Current	90A
Switching Voltage	660VAC
Length	58.4mm
Width	45.7mm
Height	23mm
Input Current	11mA
Maximum Temperature	+80°C
Min. temperature	-40°C
Mounting Type	Panel
Weight	86.5g
