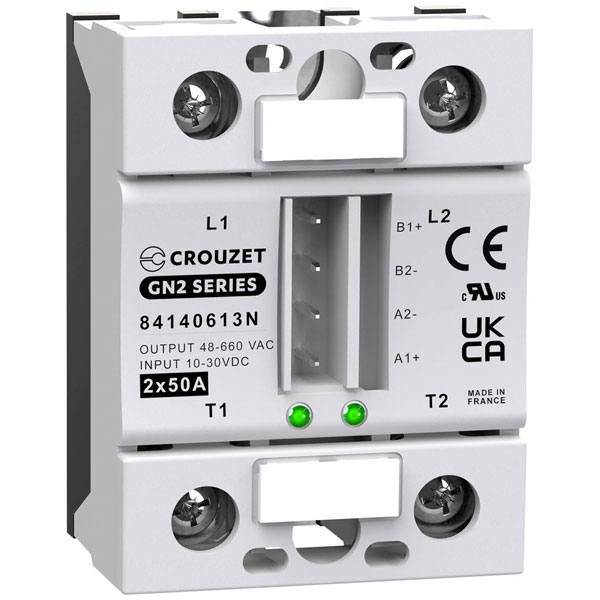

Crouzet 84140613N SSR 50A 660VAC Zero-Voltage Switching 1pc

Crouzet
Order Code:

02-4020

Brand: Crouzet MPN: 84140613N EAN-13: 3593150050010

Discontinued


The Crouzet 84140613N is a solid state relay designed for zero-voltage switching with a maximum switching voltage of 660 V AC and a current rating of 50 A. Manufactured by Crouzet, this semiconductor switch is ideal for applications requiring efficient and precise control without mechanical contacts. It is commonly used in industrial automation systems for managing high-power AC loads.
Type SSR
Input Voltage 30V DC
Switching Current 660V AC
Length 59.4mm
Width 44.8mm
Height 29mm
Connection Screw terminal
Control voltage (min.) 10V DC
Current load (max.) 50A
Max. temperature +80°C
Min. temperature -40°C
Misc Attribute SSR GN2
Switching type Zero -voltage switching
Switching voltage (min.) 48V DC
