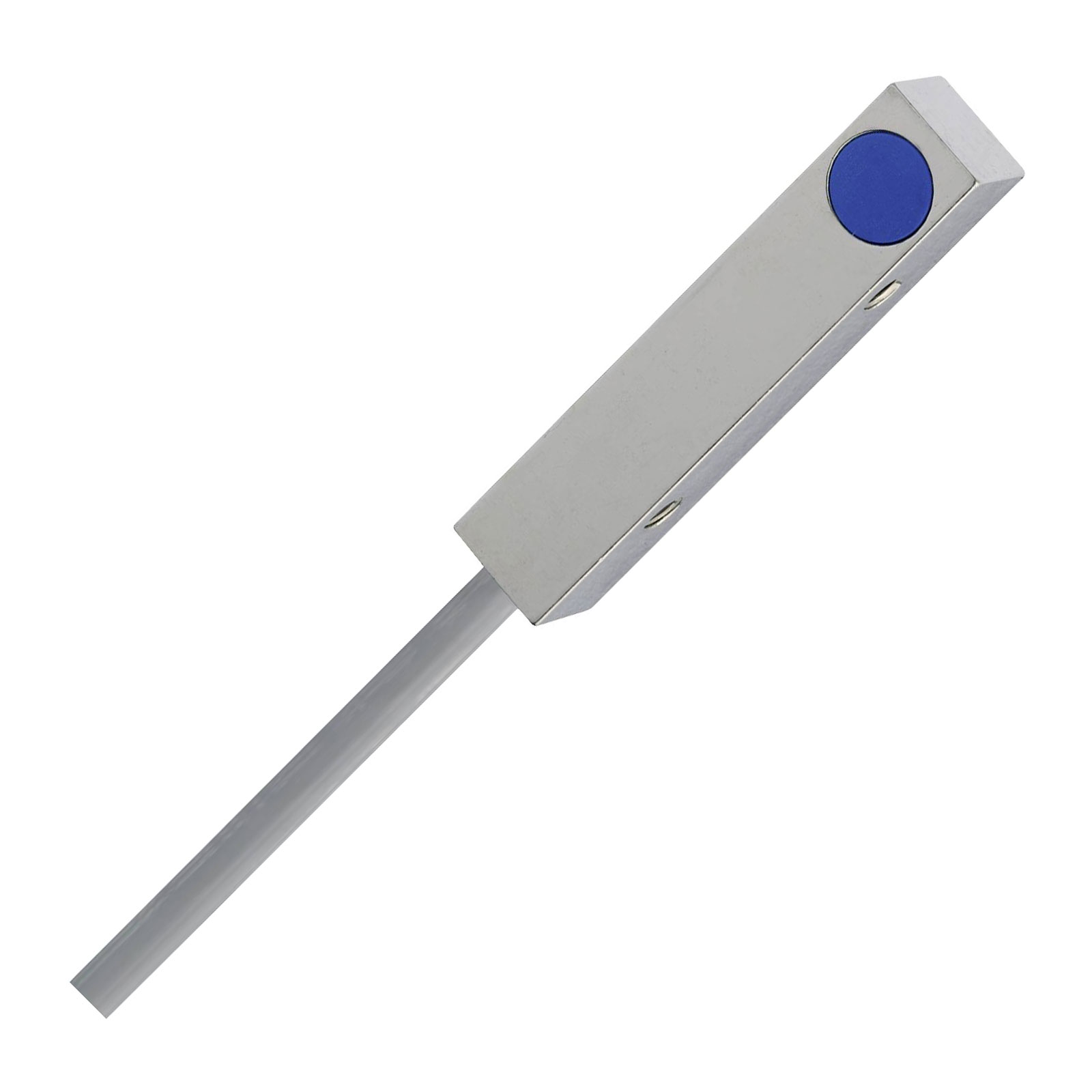

Contrinex 330-020-344 Inductive Sensor 8x8mm Quasi-Shielded PNP

The Contrinex inductive sensor 8 x 8 mm quasi-shielded PNP DW-AD-503-C8 is designed for proximity detection in various environments. This proximity switch offers reliable inductive proximity detection for automation applications. It is commonly used in manufacturing and assembly lines to detect the presence or absence of metallic objects.

Type	Inductive sensor
Cable Length	2m
Connector	Cable, 3-core
Contact Type	1 maker
Enclosure material	Brass
Height	40mm
Installation type	quasi-shielded
IP Rating	IP67
Max. operating voltage	30V
Max. temperature	+70°C
Min. operating voltage	10V
Min. temperature	-25°C
Misc Attribute	DW-AD-503-C8
Operating Voltage	10 - 30 V
Output Type	PNP
Packaging Type	Carton
Size	8 x 8 mm
Switching distance (max.)	3mm
Switching Frequency	1000Hz
