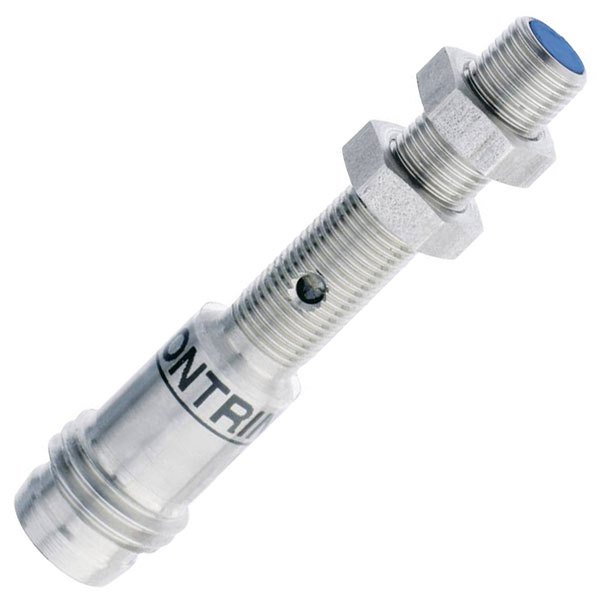

Contrinex 330-020-017 Inductive sensor M5 shielded PNP proximity switch

Contrinex 330-020-017 Inductive Sensor M5 Shielded PNP Proximity Switch, also referred to as 2875572, is designed for precise and reliable detection applications. This inductive sensor features an M5 threaded housing, making it compact and suitable for installations with limited space. Its shielded construction allows it to work effectively in close proximity to metal surfaces without interference, while the PNP output stage provides easy integration into control systems. Common applications for this sensor include position sensing in automated machinery, detection of metal objects in conveyor systems, and use in robotics for precise positioning tasks. The durable design ensures longevity and stability in various industrial environments.

Type	DW-AS-503-M5
Connector	M8 (3-pin)
Contact Type	1 maker
Enclosure material	Nickel base alloy
Height	38mm
Installation type	shielded
IP Rating	IP67
Max. operating voltage	30V
Maximum Temperature	+70°C
Min. operating voltage	10V
Minimum Temperature	-25°C
Operating Voltage	10 - 30 V
Outputs	PNP
Product Type	Inductive sensor
Size	M5
Switching distance (max.)	2.5mm
Switching Frequency	800Hz
