Contrinex 320820402 Inductive Sensor 40x40mm Non-Shielded PNP Square Design

Image Representative of Range

Contrinex 320820402 Inductive Sensor 40x40mm Non-Shielded PNP Square Design

Contrinex
Standard range
Order Code:

11-6466

Brand: Contrinex MPN: 320 820 402 EAN-13: 2050001685568
Qty Unit Price (Ex VAT)
1+ £49.08
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

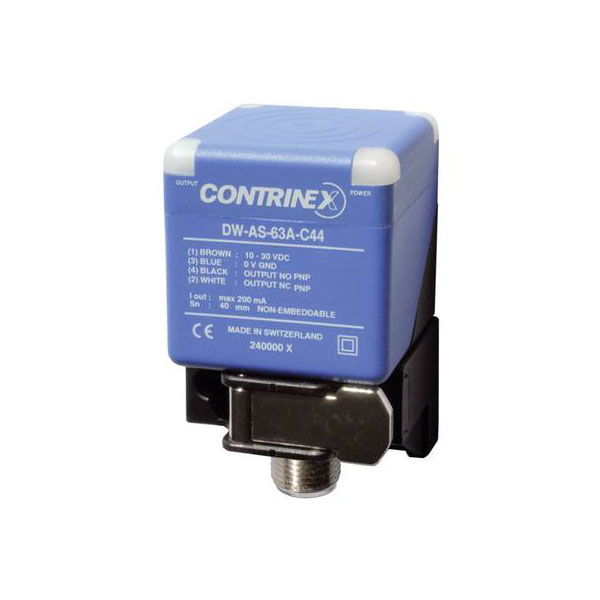

The Contrinex inductive proximity sensor, model DW-AS-61A-C44, is a 40 x 40 mm non-shielded PNP type. This proximity detector is ideal for non-contact inductive proximity detection, useful in applications such as automated assembly lines and conveyor systems. Designed by Contrinex, it is particularly effective for reliable and precise object detection.
Type Inductive proximity sensor
Connector M12 (4-pin)
Dim (L x W) 40 mm x 40 mm
Enclosure material Polyamide
Installation type non-shielded
Length 40mm
Max. operating voltage 30V DC
Max. temperature 85°C
Min. operating voltage 10V DC
Min. temperature -25°C
Misc Attribute 1 DW-AS-61 A-C44
Misc Attribute 2 DW-AS-61A-C44
Operating voltage 10 - 30 V DC
Outputs PNP
RoHS-compliant Yes
Size 40 x 40 mm
Switching distance (max.) 30mm
Switching frequency 100Hz
Width 40mm
