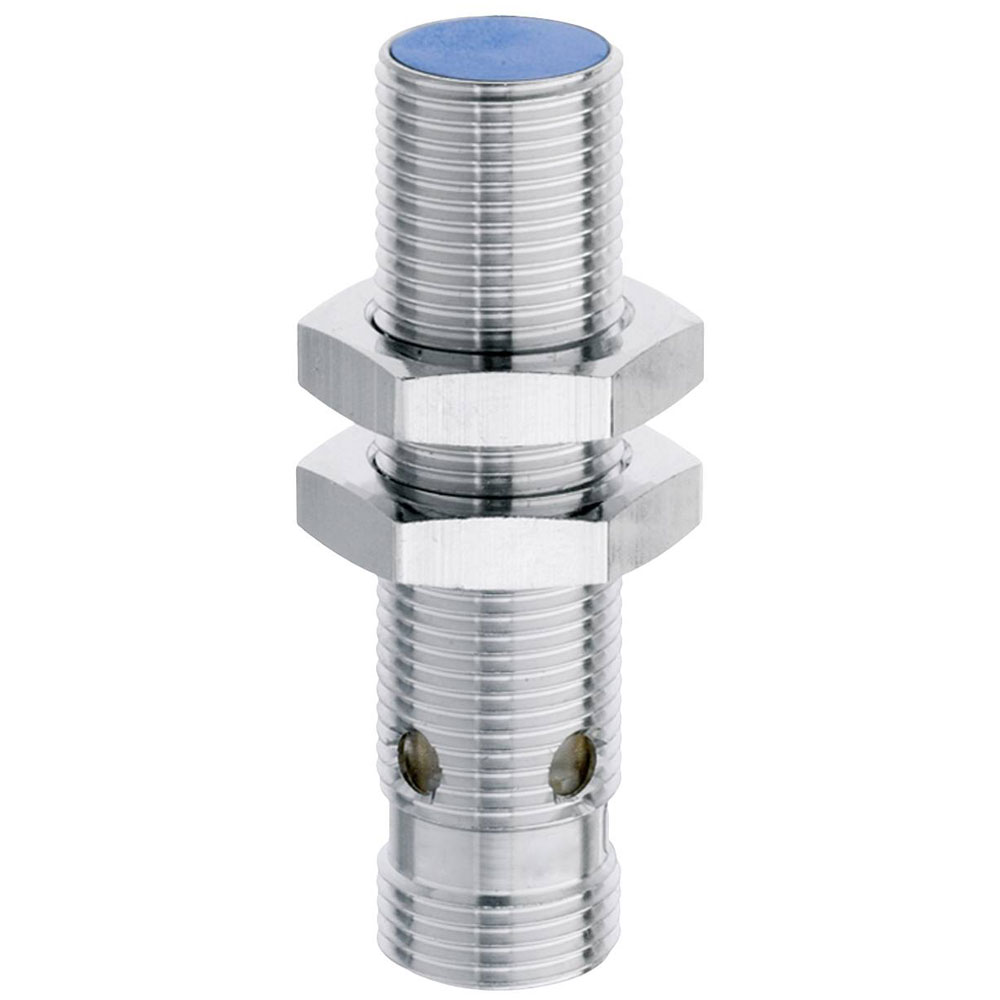

Contrinex 320-820-048 Inductive sensor M12 shielded PNP Proximity Switch

Contrinex 320-820-048 is an inductive sensor, M12 shielded, with a PNP proximity switch, designed for precise, non-contact detection of metallic objects. This product, also referred to as 2875379 - Contrinex 320-820-048, features robust construction and high resistance to environmental influences, making it ideal for industrial automation and machinery monitoring applications. The sensor operates on a 10-30 VDC supply voltage and provides a switching distance of up to 4 mm, ensuring reliable performance in various settings such as assembly lines, conveyor systems, and robotic equipment. Its M12 threaded design allows for easy integration into existing systems, offering high repeatability and accuracy crucial for demanding engineering environments.

Type	DW-AS-603-M12-120
Connector	M12 (4-pin)
Contact Type	1 maker
Enclosure material	Brass (Ni-plated)
Height	45mm
Installation type	shielded
IP Rating	IP67
Max. operating voltage	30V
Maximum Temperature	+70°C
Min. operating voltage	10V
Minimum Temperature	-25°C
Operating Voltage	10 - 30 V
Outputs	PNP
Product Type	Inductive sensor
Size	M12
Switching distance (max.)	2mm
Switching Frequency	3000Hz
