Cimco 183060 Crimp Cable Lug 45° M5 6mm² Hole Dia 5.2mm 1 piece

Image Representative of Range

Cimco 183060 Crimp Cable Lug 45° M5 6mm² Hole Dia 5.2mm 1 piece

Cimco
Standard range
Order Code:

11-6129

Brand: Cimco MPN: 183060 EAN-13: 2050001253187
Qty Unit Price (Ex VAT)
1+ £0.396
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
49 in stock, despatched in 4 working days

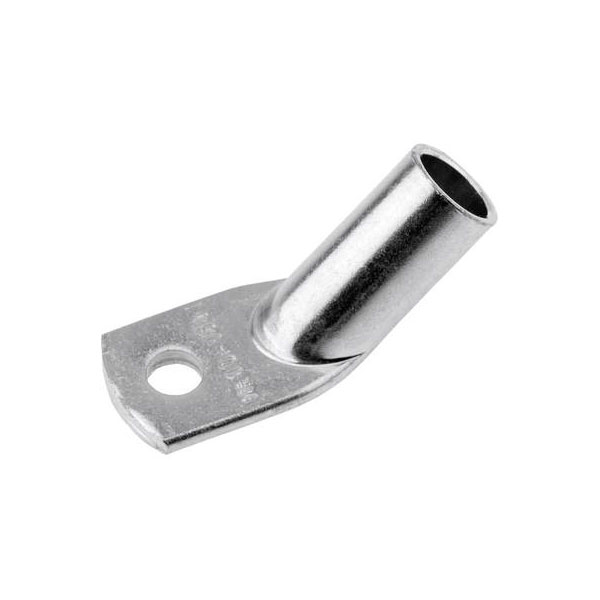

The Cimco crimp cable lug, part number 183060, is a blade terminal designed for electrical connections. It features a 45-degree angle, M5 size, and can accommodate cables up to 6 mm², with a hole diameter of 5.2 mm. This single-piece connector is typically used in secure and reliable electrical installations.
Connection angle 45°
Contact material Cathode copper, tin plated
Cross section 6mm²
Hole Ø 5.2mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 6mm²
Misc Attribute 1 45°
RoHS-compliant Yes
Size M5
Thread Size M5
Type Crimp cable lug
