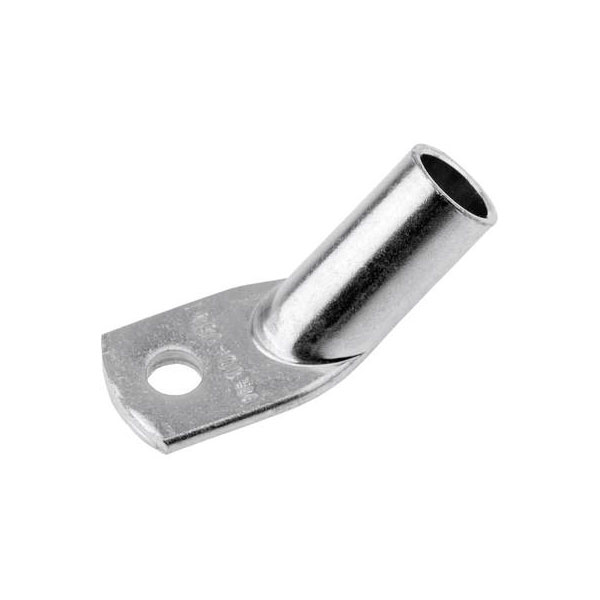

Cimco 183039 Crimp Cable Lug 45° M10 95mm² Hole Dia 10.5mm 1 piece

Image Representative of Range

Cimco 183039 Crimp Cable Lug 45° M10 95mm² Hole Dia 10.5mm 1 piece

Cimco
Order Code:

11-6127

Brand: Cimco MPN: 183039 EAN-13: 2050001253514
Qty Unit Price (Ex VAT)
2+ £2.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
23 in stock, despatched in 4 working days

Cimco manufactures the crimp cable lug 183039, designed with a 45° angle and an M10 bolt size for effective cable connections. It features a cross-sectional area of 95 mm² and a hole diameter of 10.5 mm, making it suitable for heavy-duty electrical applications. This product is ideal for use in industrial and commercial electrical installations where secure cable terminations are necessary.
Contact Material Cathode copper, tin plated
Connection angle 45°
Cross Section 95mm²
Hole Ø 10.5mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 95mm²
Misc Attribute 1 45°
Size M10
Thread Size M10
Type Crimp cable lug
