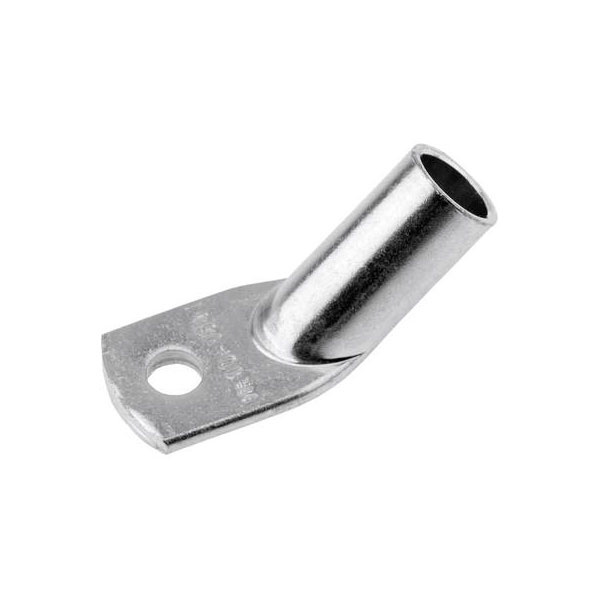

Cimco 183035 Crimp Cable Lug 45° M8 25mm² Hole Dia 8.5mm 1 piece

Image Representative of Range

Cimco 183035 Crimp Cable Lug 45° M8 25mm² Hole Dia 8.5mm 1 piece

Cimco
Standard range
Order Code:

11-6126

Brand: Cimco MPN: 183035 EAN-13: 2050001253354
Qty Unit Price (Ex VAT)
1+ £0.929
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
51 in stock, despatched in 4 working days

The Cimco crimp cable lug is designed with a 45° angle and an M8 connection, suitable for cables with a cross-section of 25 mm². This connector has a hole diameter of 8.5 mm, making it ideal for securing electrical connections in various installations. It is typically used in automotive, industrial, and mechanical applications where reliable and efficient electrical connections are required.
Connection angle 45°
Contact material Cathode copper, tin plated
Cross section 25mm²
Hole Ø 8.5mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 25mm²
Misc Attribute 1 45°
RoHS-compliant Yes
Size M8
Thread Size M8
Type Crimp cable lug
