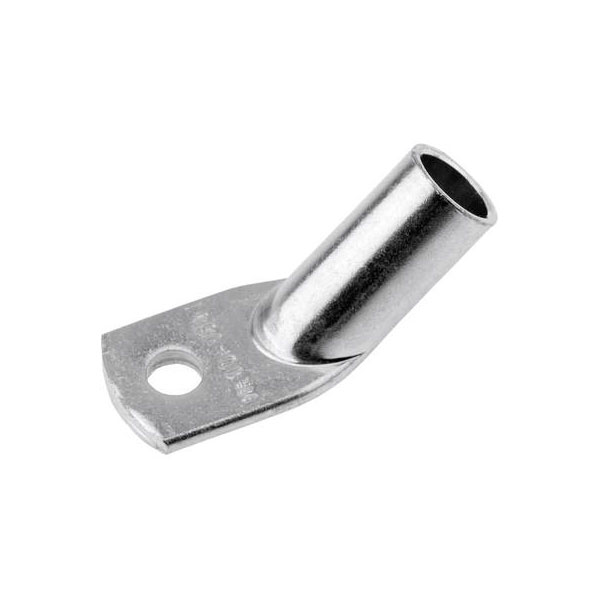

Cimco 183032 Crimp Cable Lug 45° M8 70mm² Hole Dia 8.5mm 1 piece

Image Representative of Range

Cimco 183032 Crimp Cable Lug 45° M8 70mm² Hole Dia 8.5mm 1 piece

Cimco
Order Code:

11-6124

Brand: Cimco MPN: 183032 EAN-13: 2050001253460
Qty Unit Price (Ex VAT)
3+ £1.85
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
36 in stock, despatched in 4 working days

The Cimco 183032 crimp cable lug is designed for robust electrical connections with a 45° angled blade terminal. It is suitable for M8 size connections and can accommodate cables up to 70 mm², with a hole diameter of 8.5 mm. This connector is typically used in industrial and automotive applications where secure and reliable connections are essential.
Connection Angle 45°
Contact Material Cathode copper, tin plated
Cross Section 70mm²
Hole Ø 8.5mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 70mm²
Misc Attribute 1 45°
Product Type Crimp cable lug
Size M8
Thread Size M8
