Cimco 183030 Crimp Cable Lug 45° M8 35mm² Hole Dia: 8.5mm 1 piece

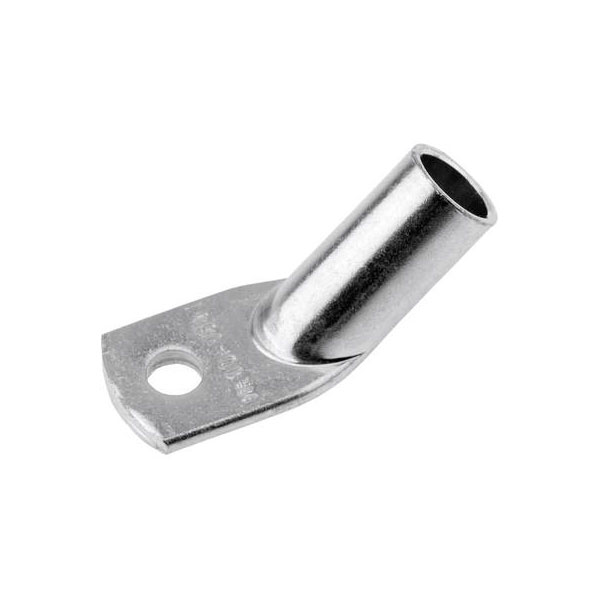

Image Representative of Range

Cimco 183030 Crimp Cable Lug 45° M8 35mm² Hole Dia: 8.5mm 1 piece

Cimco
Standard range
Order Code:

11-6122

Brand: Cimco MPN: 183030 EAN-13: 2050001253392
Qty Unit Price (Ex VAT)
1+ £1.29
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
115 in stock, despatched in 4 working days

The Cimco 183030 crimp cable lug is a blade terminal designed for secure electrical connections. It features a 45-degree angle, suitable for M8 bolts, with a cable capacity of 35 mm² and an 8.5 mm hole diameter. Typically used in electrical installations, it ensures reliable connectivity for power distribution.
Connection angle 45°
Contact material Cathode copper, tin plated
Cross section 35mm²
Hole Ø 8.5mm
Manufacturer part # 183030
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 35mm²
Misc Attribute 1 45°
Misc Attribute 2 183030
RoHS-compliant Yes
Size M8
Thread Size M8
Type Crimp cable lug
