Cimco 180560 U Terminal 16mm² Dia5.3mm Not Insulated Metal 1 piece

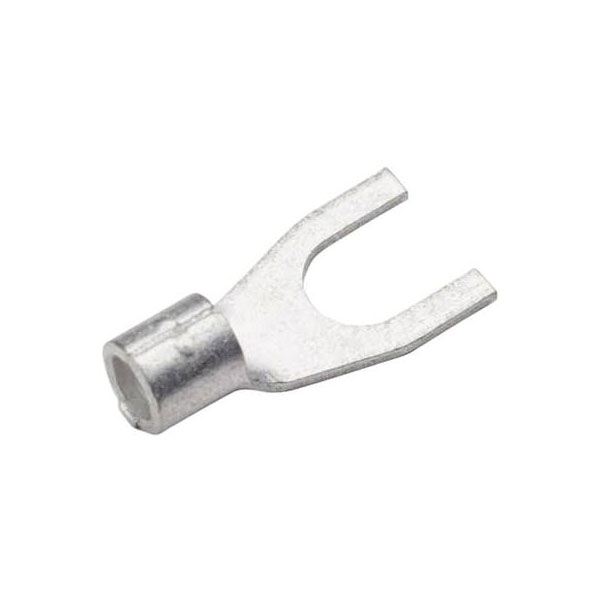

Image Representative of Range

Cimco 180560 U Terminal 16mm² Dia5.3mm Not Insulated Metal 1 piece

Cimco
Order Code:

11-6041

Brand: Cimco MPN: 180560 EAN-13: 2050001250339
Qty Unit Price (Ex VAT)
10+ £0.455
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,400 available to back orderBack-order availability date - 14/04/2026

The Cimco 180560 U terminal is a metal crimp connector designed for 16 mm² cables with a 5.3 mm hole diameter. It is not insulated and typically used in electrical installations for secure and reliable connections. This versatile terminal is suitable for use in both industrial and commercial applications.
Colour Silver
Insulation Uninsulated
Maximum Wire Size mm2 16mm2
Maximum Wire Size AWG 6
Contact Material Cathode copper, tin plated
Cross Section 16mm²
Cross-section range 16 mm² (max)
Factory colour Metal
Hole Ø 5.3mm
Insulation Option Uninsulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 16mm²
Size M5
Support sleeve No
Thread Size M5
Type Fork Terminals
