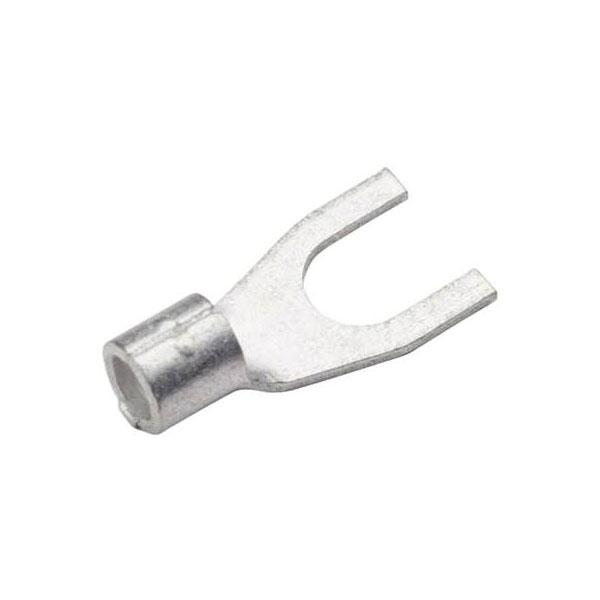

Cimco 180550 U Terminal 10mm² 5.3mm Hole Not Insulated Metal

Image Representative of Range

Cimco 180550 U Terminal 10mm² 5.3mm Hole Not Insulated Metal

Cimco
Standard range
Order Code:

11-6039

Brand: Cimco MPN: 180550 EAN-13: 2050001250315
Qty Unit Price (Ex VAT)
1+ £0.317
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
410 in stock, despatched in 4 working days

The Cimco 180550 U terminal features a 10 mm² capacity with a 5.3 mm hole, designed for use with a variety of electrical connections. It is an uninsulated metal terminal commonly used in applications where a strong and reliable connection is needed. This type of terminal, also known as a spade or crimp connector, is used widely in wiring systems.
Contact material Cathode copper, tin plated
Cross section 10mm²
Cross-section range 10 mm² (max)
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Manufacturer part # 180550
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 10mm²
Misc Attribute 180550
RoHS-compliant Yes
Size M5
Support sleeve No
Thread Size M5
Type U terminal
