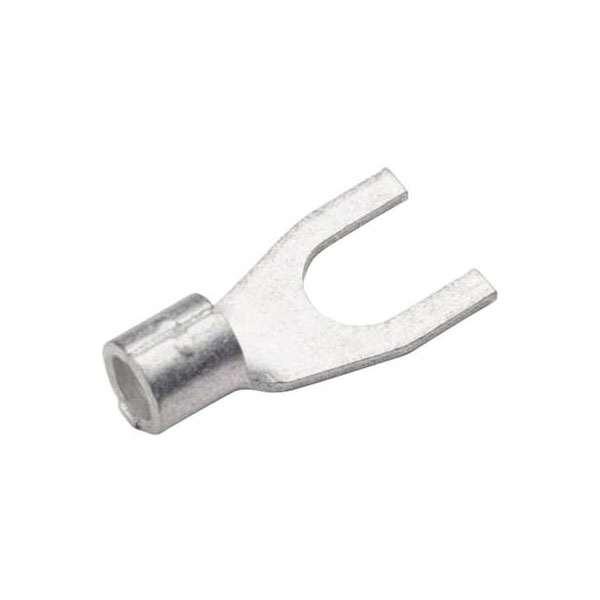

The Cimco 180544 U terminal is a metal crimp connector designed for use with 4 mm² to 6 mm² cables and features a 6.5 mm hole diameter. This non-insulated blade terminal is suitable for secure electrical connections in various applications. Commonly used in automotive and industrial electrical systems, it ensures reliable conductivity.
Contact material |
Cathode copper, tin plated |
Cross section |
4 - 6mm² |
Cross-section range |
4 - 6 mm² |
Factory colour |
Metal |
Hole Ø |
6.5mm |
Insulation type |
Not insulated |
Material (details) |
Cu-ETP according to DIN EN 13600 |
max. cross section |
6mm² |
Min. cross section |
4mm² |
RoHS-compliant |
Yes |
Size |
M6 |
Support sleeve |
No |
Thread Size |
M6 |
Type |
U terminal |
