Cimco 180536 U Terminal 1.50/2.50mm² Dia6.5mm Metal 1 piece Soldered

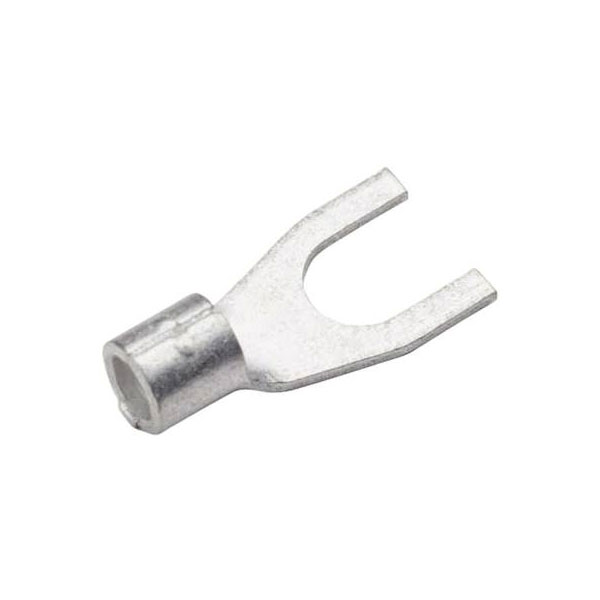

Image Representative of Range

Cimco 180536 U Terminal 1.50/2.50mm² Dia6.5mm Metal 1 piece Soldered

Cimco
Order Code:

11-6034

Brand: Cimco MPN: 180536 EAN-13: 2050001250261
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
269 in stock, despatched in 4 working days

The Cimco 180536 U terminal is a metal crimp connector designed for wire sizes between 1.50 mm² and 2.50 mm². It features a U-shaped terminal with a hole diameter of 6.5 mm and is not insulated. Typically used in electrical applications, it ensures secure connectivity in various wiring installations.
Type U terminal
Contact Material Cathode copper, tin plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 6.5mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 2.50mm²
Min. cross section 1.50mm²
Size M6
Support sleeve No
Thread Size M6
