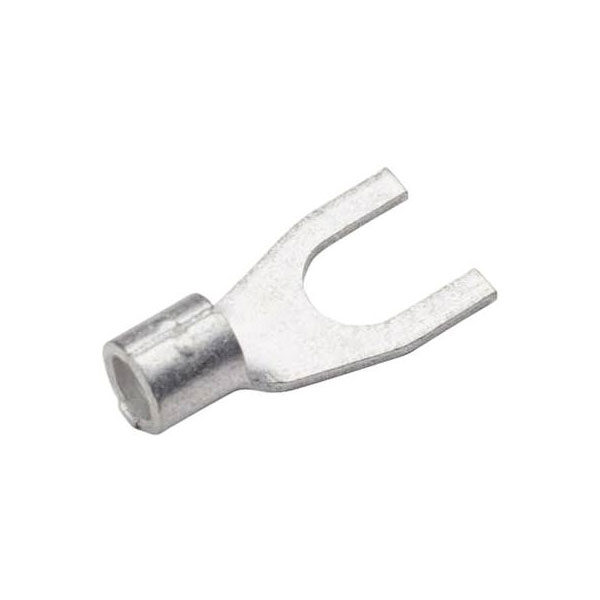

Cimco 180534 U Terminal 1.50-2.50 mm² Dia5.3mm Metal Non-Insulated

Image Representative of Range

Cimco 180534 U Terminal 1.50-2.50 mm² Dia5.3mm Metal Non-Insulated

Cimco
Standard range
Order Code:

11-6033

Brand: Cimco MPN: 180534 EAN-13: 2050001250254
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
240 in stock, despatched in 4 working days

The Cimco 180534 U terminal is an uninsulated metal connector designed for wire sizes of 1.50 mm² to 2.50 mm². It features a 5.3 mm diameter hole, making it suitable for secure crimp connections. This terminal is typically used for electrical connections in industrial and automotive applications.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Manufacturer part # 180534
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 180534
RoHS-compliant Yes
Size M5
Support sleeve No
Thread Size M5
Type U terminal
