Cimco 180524 U Terminal 0.50-1mm² 5.3mm Hole Not Insulated Metal

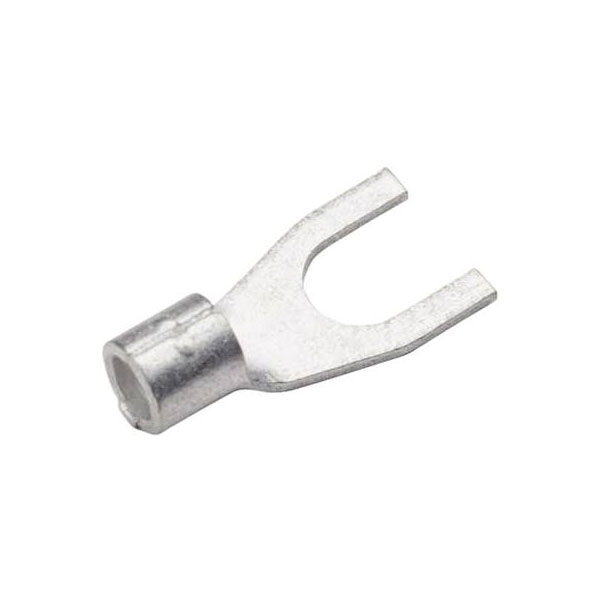

Image Representative of Range

Cimco 180524 U Terminal 0.50-1mm² 5.3mm Hole Not Insulated Metal

Cimco
Order Code:

11-6030

Brand: Cimco MPN: 180524 EAN-13: 2050001250223
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 11 days

Cimco manufactures the 180524 U terminal, which is a metal, non-insulated crimp connector designed for wire sizes ranging from 0.50 mm² to 1 mm². It features a 5.3 mm diameter hole for secure installation. This versatile terminal is typically used in electrical and automotive applications for connecting wires.
Colour Silver
Insulation Uninsulated
Maximum Wire Size mm2 1.0mm2
Maximum Wire Size AWG 18
Contact Material Cathode copper, tin plated
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation Option Uninsulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 1mm²
Min. cross section 0.50mm²
Support sleeve No
Thread Size M5
Type Fork Terminals
