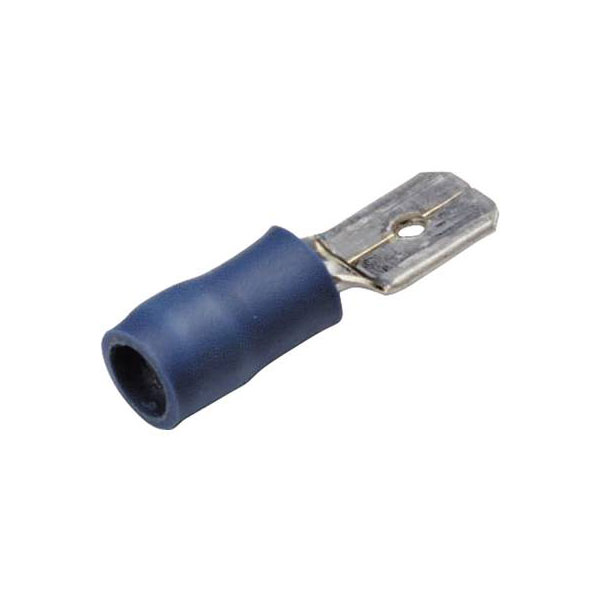

Cimco 180291 Blade Terminal 4.8mm Width 0.8mm Thick Blue Insulated

Image Representative of Range

Cimco 180291 Blade Terminal 4.8mm Width 0.8mm Thick Blue Insulated

Cimco
Standard range
Order Code:

11-5967

Brand: Cimco MPN: 180291 EAN-13: 2050001251312
Qty Unit Price (Ex VAT)
1+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
229 in stock, despatched in 4 working days

The Cimco 180291 is a blue, partially insulated blade terminal with a connector width of 4.8 mm and a thickness of 0.8 mm. It is ideal for secure electrical connections in automotive and industrial applications. This crimp connector by Cimco ensures reliable conductivity at 180° angles.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Halogen-free PA insulation (polyamide, nylon)
Insulation material PA 6.6
Insulation type Partially insulated
Manufacturer part # 180291
Material (details) Material: CuZn (brass)
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 180291
RoHS-compliant Yes
Size 4.8 x 0.8 mm
Support sleeve Yes
Temperature range -60 - +105°C
Type Blade terminal
