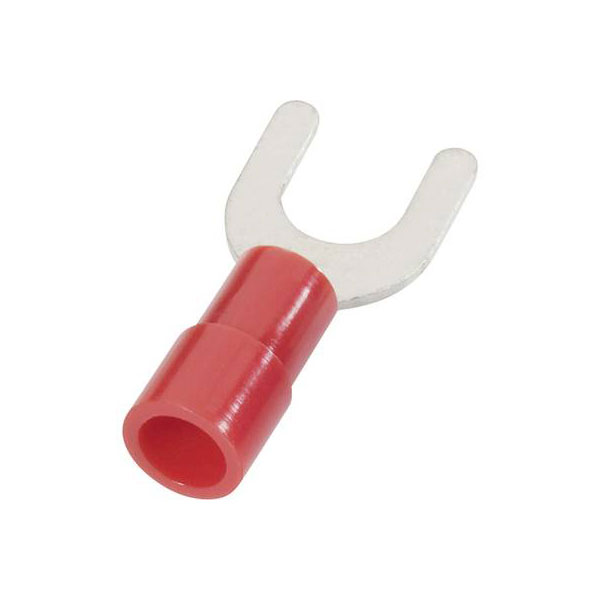

Cimco 180172 U Terminal 10 mm² Hole Dia 6.4 mm Partially Insulated Red

Image Representative of Range

Cimco 180172 U Terminal 10 mm² Hole Dia 6.4 mm Partially Insulated Red

Cimco
Order Code:

11-5928

Brand: Cimco MPN: 180172 EAN-13: 2050001250926
Qty Unit Price (Ex VAT)
10+ £0.605
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
162 in stock, despatched in 4 working days

The Cimco 180172 U terminal is a partially insulated red crimp connector designed for cables up to 10 mm². It features a 6.4 mm diameter hole, ensuring a secure attachment point. Typically used in electrical applications, this U terminal is ideal for connecting wires to a screw or stud in control panels.
Insulation PA
Type U terminal
Contact Material Cathode copper, tin plated
Cross Section 10mm²
Cross-section range 10 mm² (max)
Factory colour Red
Hole Ø 6.4mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 10mm²
Size M6
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M6
