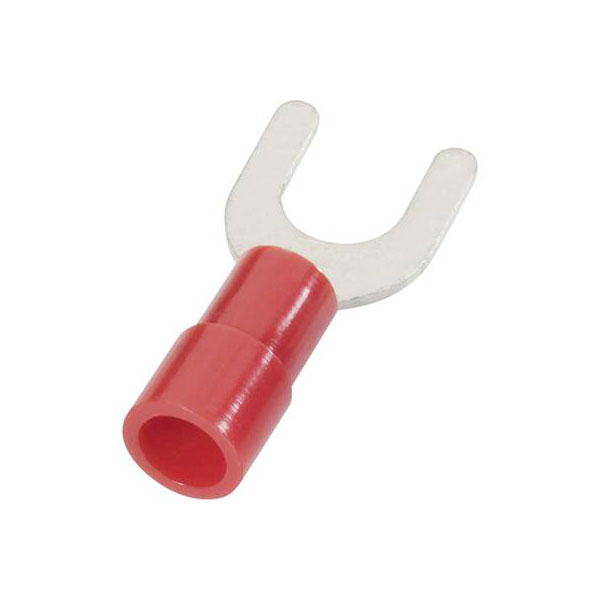

Cimco 180170 U Terminal 10mm² 5.3mm Hole Partially Insulated Red

Image Representative of Range

Cimco 180170 U Terminal 10mm² 5.3mm Hole Partially Insulated Red

Cimco
Standard range
Order Code:

11-5927

Brand: Cimco MPN: 180170 EAN-13: 2050001250919
Qty Unit Price (Ex VAT)
1+ £0.554
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
391 in stock, despatched in 4 working days

The Cimco 180170 U terminal is a crimp connector designed for 10 mm² cable with a 5.3 mm hole diameter. It features partial insulation and comes in a red colour, providing secure electrical connections. This terminal is commonly used in electrical installations and repairs to join wires efficiently and safely.
Contact material Cathode copper, tin plated
Cross section 10mm²
Cross-section range 10 mm² (max)
Factory colour Red
Hole Ø 5.3mm
Insulation PA (polyamide), halogen free
Insulation material PA
Insulation type Partially insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 10mm²
RoHS-compliant Yes
Size M5
Support sleeve No
Temperature range -60 - +105°C
Thread Size M5
Type U terminal
