Cimco 180168 U Terminal 4mm²/6mm² 10.5mm Hole Part. Ins. Yellow

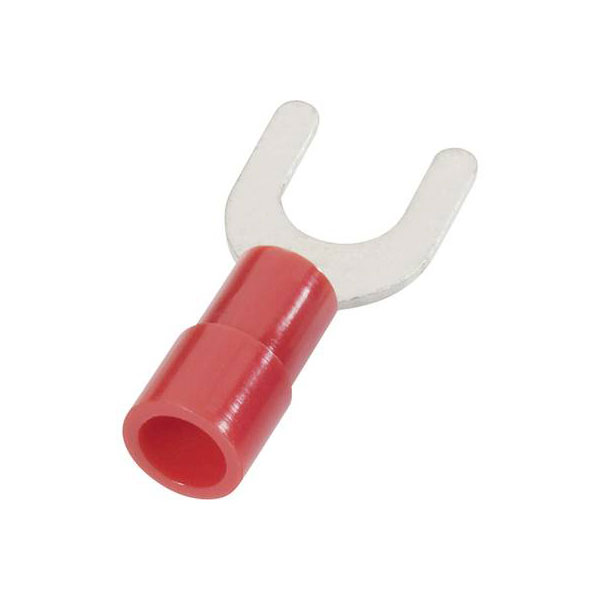

Image Representative of Range

Cimco 180168 U Terminal 4mm²/6mm² 10.5mm Hole Part. Ins. Yellow

Cimco
Order Code:

11-5926

Brand: Cimco MPN: 180168 EAN-13: 2050001250902
Qty Unit Price (Ex VAT)
20+ £0.262
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
134 in stock, despatched in 4 working days

Cimco manufactures the 180168 U terminal, featuring a partially insulated design in yellow with a hole diameter of 10.5 mm, suitable for cables sized 4 mm² to 6 mm². This U terminal is commonly used for electrical connections in various industrial and residential applications, providing a reliable and secure link. As a crimp connector, it ensures efficient conductivity and easy installation.
Colour Yellow
Insulation PA
Maximum Wire Size mm2 6mm2
Maximum Wire Size AWG 10
Contact Material Cathode copper, tin plated
Cross Section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 10.5mm
Insulation Option Partially Insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 6mm²
Min. cross section 4mm²
Size M10
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M10
Type Fork Terminals
